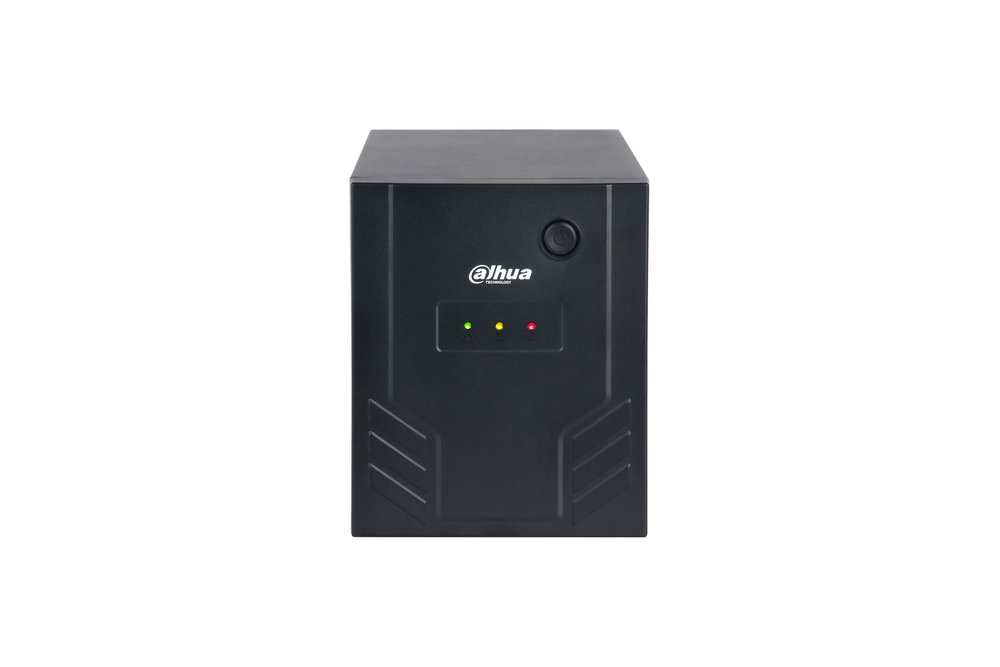

Sistema UPS line-interactive da 1.500 VA / 900 W, 2 batterie da 7Ah (13.7 V cad.), tempo di ricarica 4~6 ore, 2 prese europee
| Capacity | |
| Capacity | 1500 VA, 900 W |
| Input | |
| Input Voltage | 170–280 VAC |
| Input Current | 7.2 A |
| Rated Input Frequency | 50/60 Hz |
| Power Factor | ≥0.6 |
| Output | |
| Output Voltage | 230 VAC by default |
| Output Current | 6.9 A |
| Output Power | 1500 VA, 900 W |
| Output Frequency | 50/60Hz |
| Switch Time | Typical 4 ms–8 ms AC Mode: Pure sine wave; |
| Output Wave | Battery Mode: Simulated sine wave |
| Alarm | |
| Alarm Indicator | Overload: Beeps once every 0.5 seconds; Battery Replacement: Beeps once every 2 seconds; Fault: Beeps continuously |
| Protection | |
| Types of Protection | discharge AC Mode Overload: 110% + 20%/ – 10%. The UPS shuts down after 5 minutes and reports an overload fault; AC Mode Overload: 120% + 20%/ – 10%. The UPS shuts |
| Overload Capacity | down immediately and reports an overload fault; Battery Mode Overload: 120% + 20%/ – 10%. The UPS shuts down immediately and reports an overload fault |
| Plugs And Sockets | |
| Input Plug | European standard |
| Input Cable Length | 1.2 m (3.94 ft) |
| Socket Standard | European standard |
| Number of Output Sockets | 4 |
| Other | |
| Built-in Fan | NO |
| Structure | |
| Product Dimensions | 6.56") (L × W × H) 470 mm × 195 mm × 255 mm (18.50" × 7.68" × 10.04") |
| Packaging Dimensions | (L × W × H) |
| Casing Material | Plastic front cover + metal body |
| Appearance Color | Black |
| Net Weight | 11.4 kg (25.13 lb) |
| Gross Weight | 11.8 kg (26.02 lb) |
| Environment | |
| Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Operating Humidity | 0%–90%, non-condensing |
| Storage Temperature | –15 °C to +55 °C (+5 °F to +131 °F) |
| Storage Humidity | 0%–90%, non-condensing |
| Ordering Information | |
| Type | Model Description European Standard 230V |
| Uninterruptible Power | – Line-interactive 1500VA/ DH-PFM3350-1500 |
| Supply(with battery) | 900W Uninterruptible Power Supply |
