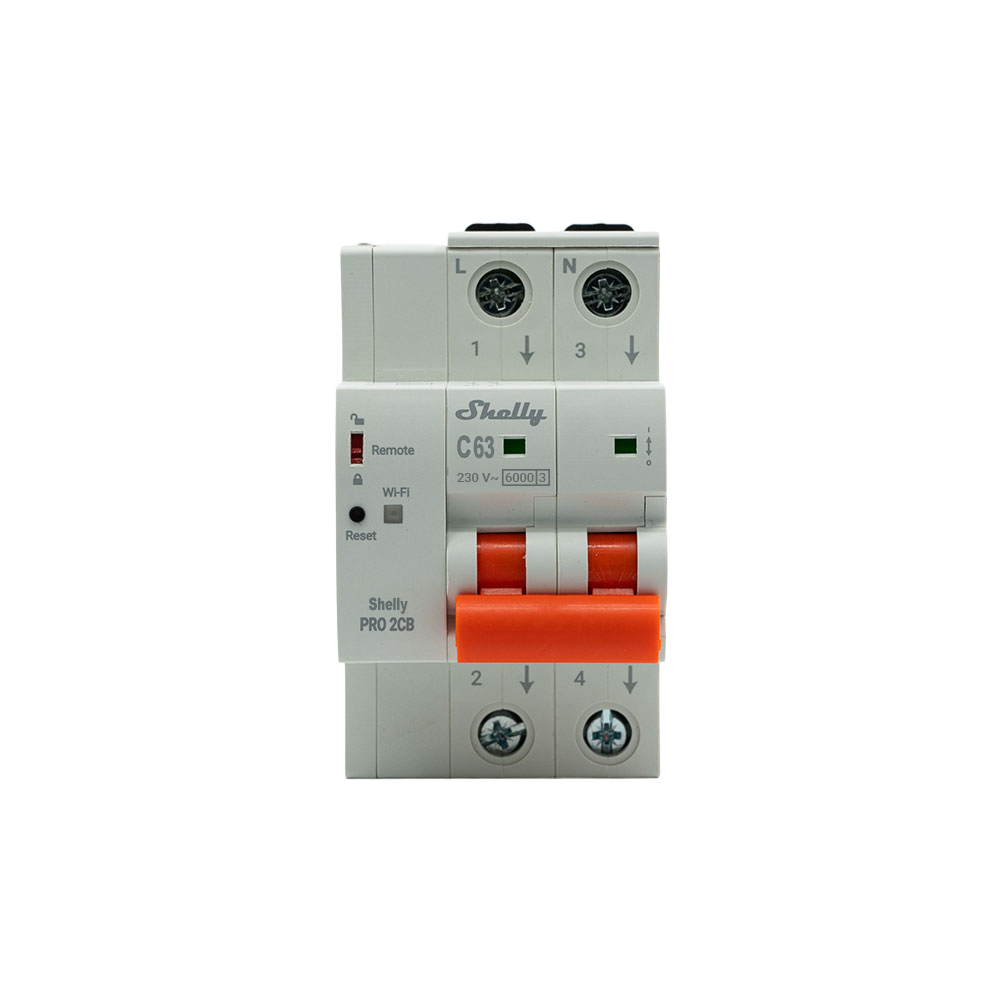

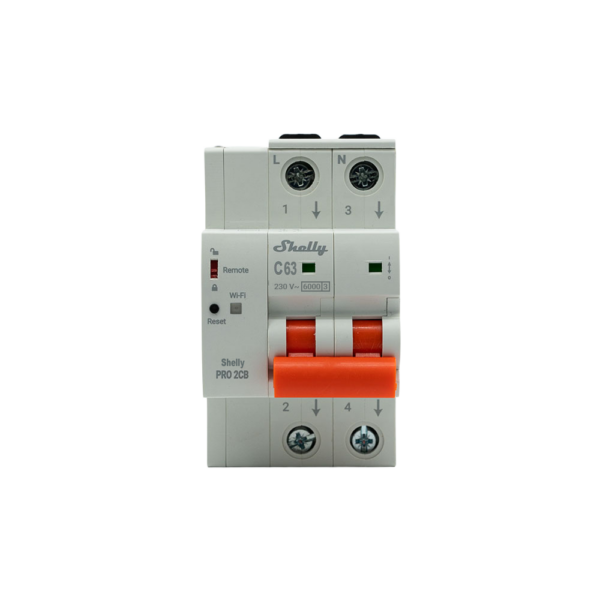

Shelly Pro 2CB C63A – magnetotermico intelligente da quadro
Interruttore magnetotermico intelligente da guida DIN: protegge la linea come un magnetotermico tradizionale e in più si apre e si chiude da app, da scenario o da automazione. Pensato per il quadro elettrico, porta la protezione dentro la gestione smart dell’impianto.
- Protezione magnetotermica e comando a distanza nello stesso dispositivo: 2 circuiti protetti e comandabili senza aggiungere relè esterni
- Corrente nominale 63 A, curva B o C, potere di interruzione 6 kA
- Wi-Fi e porta di rete RJ45: nei quadri dove il Wi-Fi non arriva si collega con il cavo
- Comando e stato dall’app Shelly Smart Control, con automazioni e script eseguiti sul dispositivo
- Montaggio su guida DIN, alimentazione 230 V~ 50 Hz
- Adatto a impianti residenziali, terziario e industria leggera
| Physical | |
| Size (HxWxD): | 93x36x74 mm / 3.66×1.42×2.91 in (Shelly Pro 1CB) 93x54x76 mm / 3.66×2.13×3.00 in (Shelly Pro 2CB) 93x72x76 mm / 3.66×2.83×3.00 in (Shelly Pro 3CB) 93x90x76 mm / 3.66×3.54×3.00 in (Shelly Pro 4CB) |
| Weight: | 212 g / 7.5 oz (Shelly Pro 1CB) 335 g / 11.8 oz (Shelly Pro 2CB) 465 g / 16.4 oz (Shelly Pro 3CB) 575 g / 20.3 oz (Shelly Pro 4CB) |
| Screw terminals max torque: | 2.5 Nm / 22 lbin |
| Conductor cross section: | Max. 6 mm² / 10 AWG (Solid) Max. 25 mm² / 3 AWG (Stranded) Max. 16 mm² / 5 AWG (Flexible) |
| Conductor stripped length: | 15 mm / 0.6 in |
| Mounting: | DIN rail |
| Shell material: | Plastic |
| Shell color: | RAL 7035 (Light gray) |
| Environmental | |
| Ambient working temperature: | -5°C to 40°C / 23°F to 105°F |
| Humidity: | 30% to 70% RH |
| Max. altitude: | 2000 m / 6562 ft |
| Pollution degree: | 2 |
| Electrical | |
| Power supply: | 230 V~ 50 Hz |
| Power consumption: | < 3 W |
| Poles: | 1, 2, 3, or 4 |
| Circuit breaker tripping curve: | B, C |
| Circuit breaker rated current: | 10 A, 16 A, 25 A, 32 A, 40 A, 63 A |
| Short circuit breaking capacity: | 6 kA |
| Energy limiting class: | 3 |
| Min. operating voltage: | 160 V~ 50 Hz |
| Insulation voltage: | 500 V |
| Rated impulse withstand voltage: | 4 kV |
| Applicable standards: | IEC 60898-1 |
| Power loss: | 1.13 W (Shelly Pro 1CB C10) 2.00 W (Shelly Pro 1CB C16) 1.85 W (Shelly Pro 1CB C25) 2.10 W (Shelly Pro 1CB C32) 2.76 W (Shelly Pro 1CB C40) 5.60 W (Shelly Pro 1CB C63) 2.26 W (Shelly Pro 2CB C10) 4.00 W (Shelly Pro 2CB C16) 3.70 W (Shelly Pro 2CB C25) 4.20 W (Shelly Pro 2CB C32) 5.52 W (Shelly Pro 2CB C40) 11.20 W (Shelly Pro 2CB C63) 3.39 W (Shelly Pro 3CB C10) 6.00 W (Shelly Pro 3CB C16) 5.55 W (Shelly Pro 3CB C25) 6.30 W (Shelly Pro 3CB C32) 8.28 W (Shelly Pro 3CB C40) 16.80 W (Shelly Pro 3CB C64) 4.52 W (Shelly Pro 4CB C10) 8.00 W (Shelly Pro 4CB C16) 7.40 W (Shelly Pro 4CB C25) 8.40 W (Shelly Pro 4CB C32) 11.00 W (Shelly Pro 4CB C40) 22.40 W (Shelly Pro 4CB C63) |
| Endurance | |
| Electrical: | > 6000 cycles |
| Mechanical: | > 20000 cycles (Shelly Pro 1CB, Shelly Pro 2CB) > 10000 cycles (Shelly Pro 3CB, Shelly Pro 4CB) |
| Remote toggles: | < 1/min |
| Sensors, meters | |
| Voltmeter (AC): | Yes |
| Voltmeter accuracy: | ±5 % |
| Internal-temperature sensor: | Yes |
| Wi-Fi | |
| Protocol: | 802.11 b/g/n |
| RF band: | 2412 – 2483 MHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth | |
| Protocol: | 4.2 |
| RF band: | 2402 – 2480 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| Microcontroller unit | |
| CPU: | ESP32-D0WDQ6 |
| Flash: | 8 MB |
| Firmware capabilities | |
| Event logging: | 100 events |
| Data export: | CSV for PQ recorded values JSON format export through RPC |
| Schedules: | Yes |
| Webhooks (URL actions): | 20 with 5 URLs per hook… |
| Wi-Fi range extender: | Yes |
| BLE Gateway: | Yes |
| Scripting: | Yes |
| MQTT: | Yes |
| Encryption: | Yes |
| Terminals: | Wires |
| 1/L: | Input terminal ( 1/L and the N wire provide the Device power supply) L Live wire |
| 2: | Output terminal N Neutral wire |
| LAN: | Local Area Network RJ 45 connector |
| Terminals: | Wires |
| 1/L, 3/N: | Input terminals ( 1/L and 3/N provide the Device power supply) L Live wire |
| 2, 4: | Output terminals N Neutral wire |
| LAN: | Local Area Network RJ 45 connector |
| Terminals: | Wires |
| 1/L, 3, 5: | Input terminals ( 1/L and the N wire provide the Device power supply) LA Phase 1 live wire |
| 2, 4, 6: | Output terminals LB Phase 2 live wire |
| LAN: | Local Area Network RJ 45 connector LC Phase 3 live wire |
| N: | Neutral wire |
| Terminals: | Wires |
| 1/L, 3, 5, 7/N: | Input terminals ( 1/L and 7/N provide the Device power supply) LA Phase 1 live wire |
| 2, 4, 6, 8: | Output terminals LB Phase 2 live wire |
| LAN: | Local Area Network RJ 45 connector LC Phase 3 live wire |
| N: | Neutral wire |
