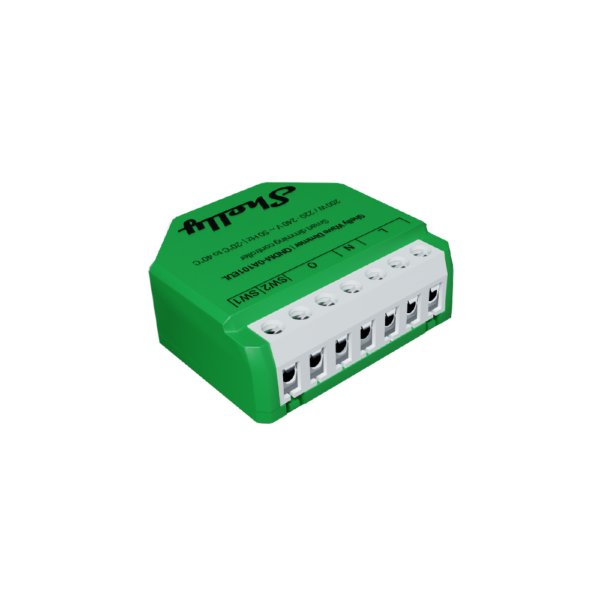

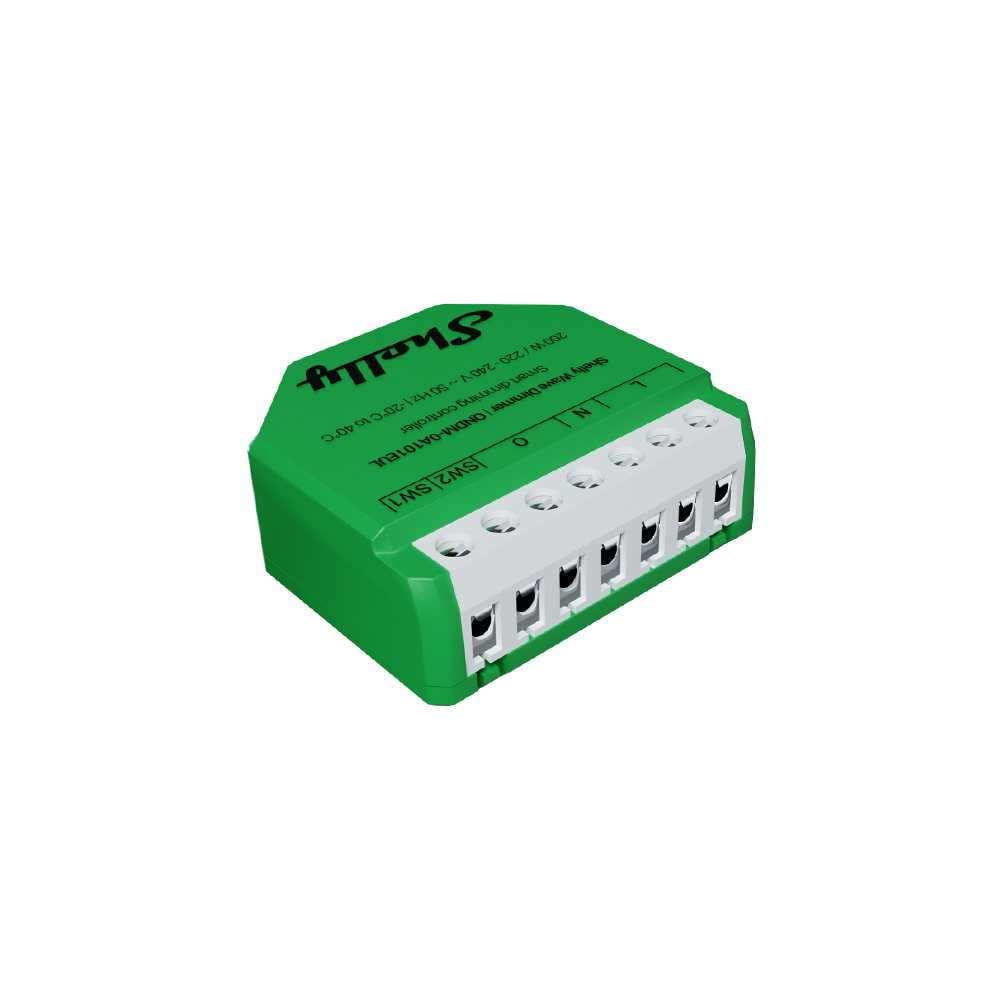

Shelly Wave Dimmer LR – dimmer Z-Wave a lunga portata
Dimmer da incasso in rete Z-Wave, nella versione a lunga portata: regola l’intensità delle lampade dimmerabili e resta collegato anche a distanza.
- Regolazione dell’intensità di lampade dimmerabili
- Rete Z-Wave con portata estesa (Long Range)
- Si installa nella scatola dietro l’interruttore esistente
- Comando manuale conservato
| Power supply | 220-240 V ̴ 50 Hz |
| Power consumption | < 0.3 W |
| Neutral not needed | Yes |
| Min. load without neutral and without a Bypass | 5W (depends on LED type, in case of flickering use bypass) |
| External protection | 10 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3 |
| Dimming type | Trailing edge |
| Power measurement [W] | Yes |
| Max. output power | 200 W |
| Internal-temperature sensor | Yes |
| Overheating protection | Yes |
| Overcurrent protection | Yes |
| Overvoltage protection | Yes |
| Long range network | |
| Distance (depends on local condition) | Up to 80 m indoors (262 ft.) or up to 1000 m outdoors (3281 ft.) |
| Z-Wave® repeater | No |
| Z-Wave® frequency bands | 864 MHz |
| Mesh network | |
| Distance (depends on local condition) | Up to 40 m indoors (131 ft.) |
| Z-Wave® repeater | Yes |
| Z-Wave® frequency bands | 868.4 MHz |
| Maximum radio frequency power transmitted in frequency band(s) | < 25 mW |
| CPU | Z-Wave® S800 |

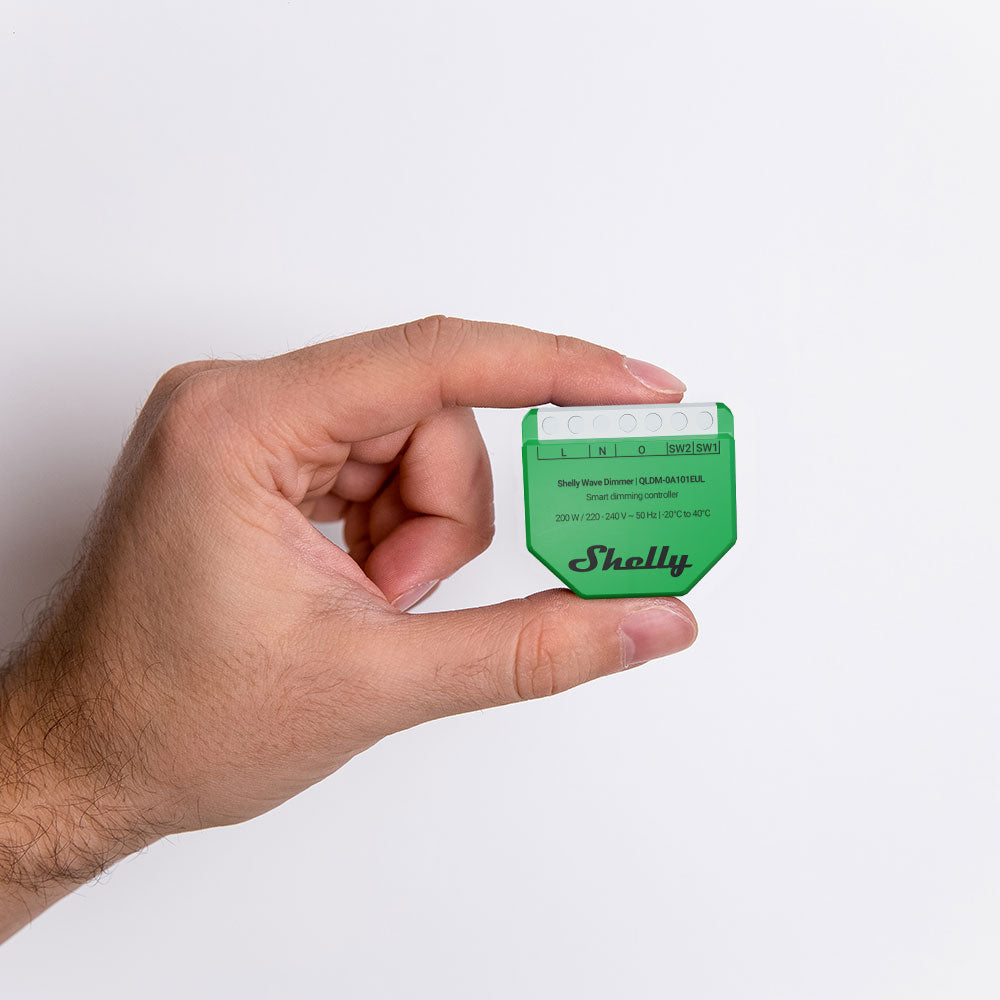

| Size (H x W x D) | 37x42x16 ±0.5 mm / 1.46×1.65×0.63 ±0.02 in |
| Weight | 25 g / 0.88 oz. |
| Mounting | In-wall box |
| Screw terminals max. torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in |
| Shell material | Plastic |
| Color | Lime |
| Ambient temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% RH |
| Max. altitude | 2000 m / 6562 ft |
