Versione Long Range: stesse funzioni del modello standard, con portata radio maggiore per arrivare dove il segnale fatica.

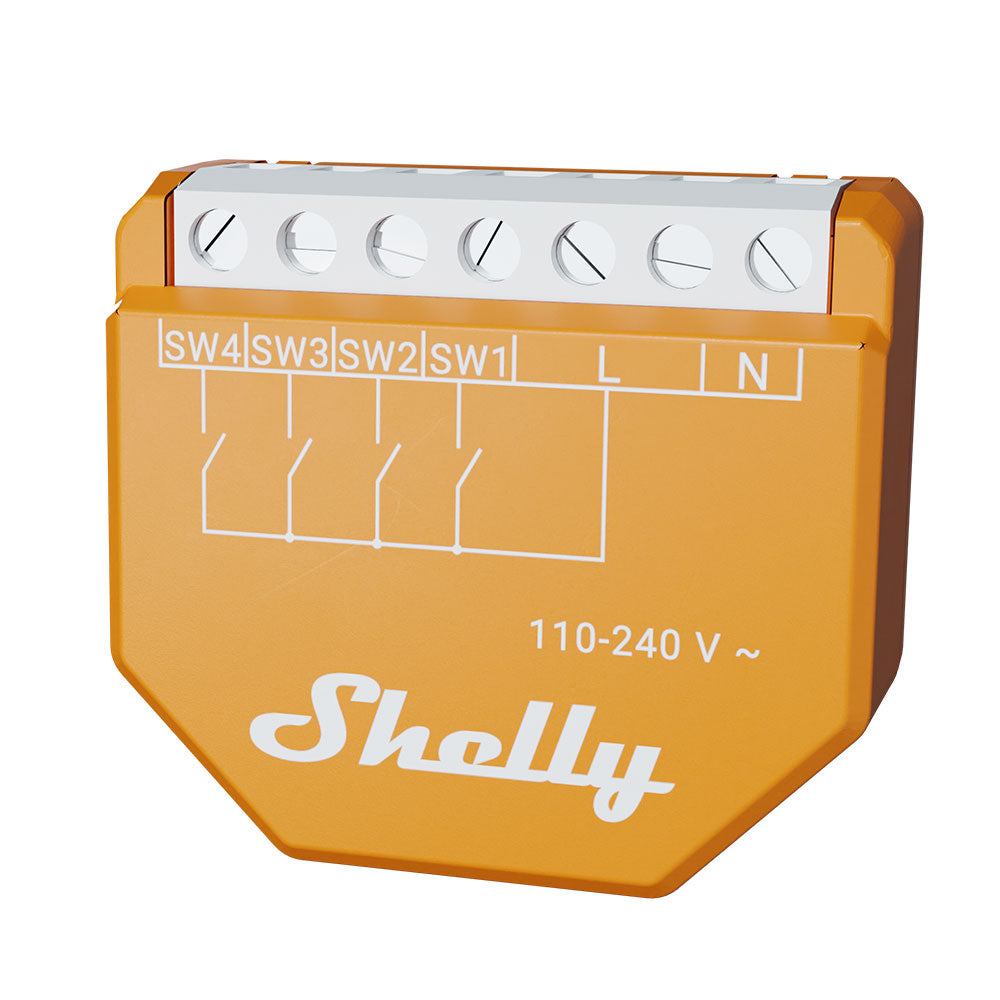

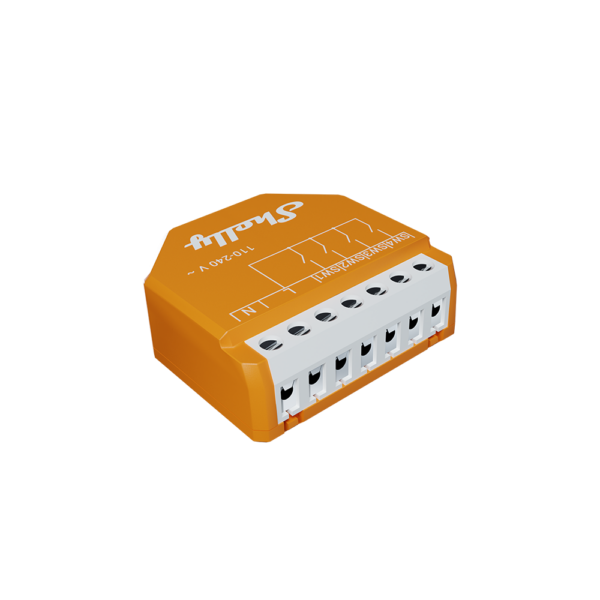

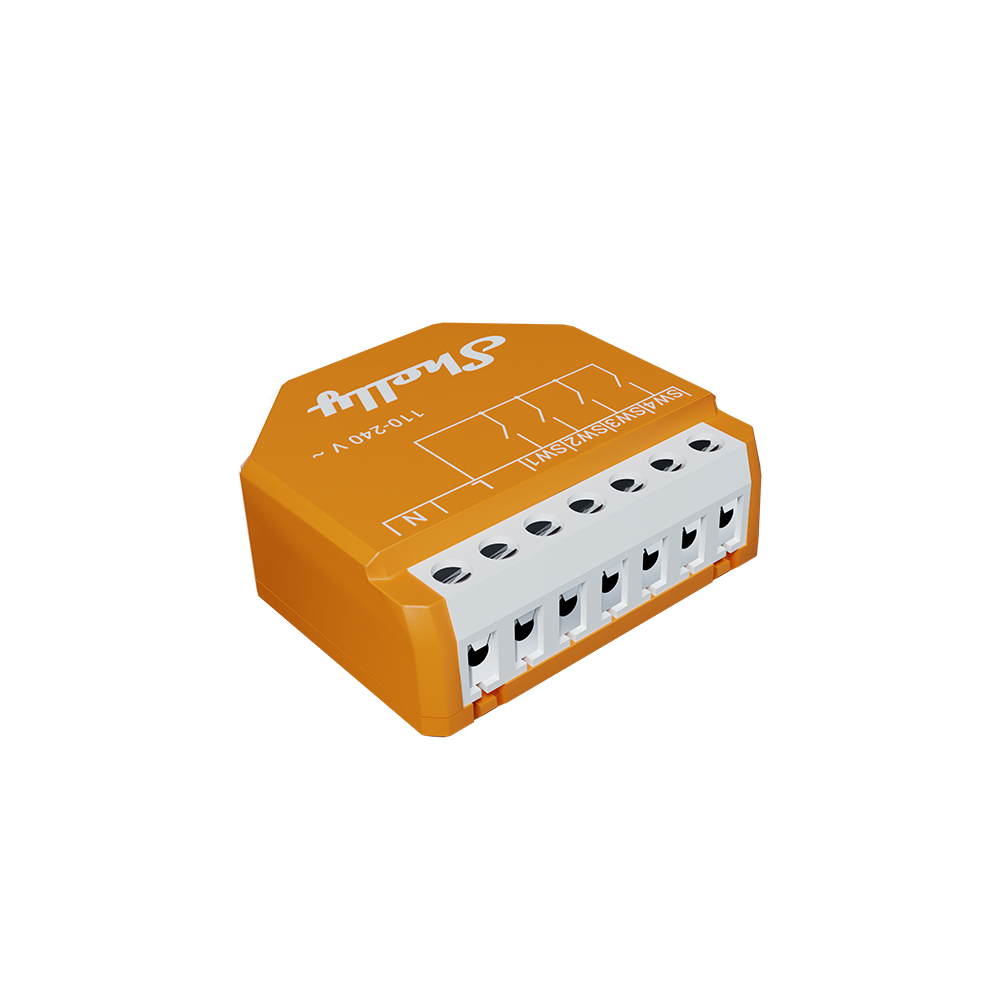

Shelly Qubino Wave i4, Modulo di controllo remoto Z-Wave con 4 ingressi digitali, Domotica, Senza fili, Azioni e scene intelligenti, Basso consumo energetico, App iOS Android, Alexa, Google Home
- Wave i4 è un dispositivo di lettura degli ingressi ( non contiene relè ).
- Controlla manualmente altri dispositivi Z-Wave (ad esempio con un interruttore multi-pulsante).
- Multiclic – attivazione fino a 12 azioni
- Consumo energetico estremamente basso: < 0,2 W
- Banda di frequenza Z-Wave: 868,4 MHz (paesi CEPT)
- Tecnologia più recente: serie Z-Wave 800
- Configurazione automatica con SmartStart – Attiva/disattiva scene e automazioni
- Sicurezza 2 Autenticato per il massimo livello di sicurezza
- Aggiornamenti firmware via etere
- Funziona con gateway certificati Z-Wave e oltre 4.000 dispositivi Z-Wave
*Un gateway (smart hub) non è incluso. Per la configurazione del dispositivo è necessario un gateway (smart hub).
| LED blinking modes | |
| Mode 1: | 0,5s On/2s Off |
| Mode 2: | 0,5s On/0,5s Off |
| Mode 3: | 0,1s On/0,1s Off |
| Mode 4: | (1x to 6x – 0,2s On/0,2s Off) + 2s Off |
| Mode 5: | 0,2s On blue/0,2s On red |
| Power supply AC: | 110 – 240 V ̴ 50/60 Hz |
| Power supply DC: | No |
| Power consumption: | < 0.2 W |
| Overcurrent protection: | No |
| Power measurement: | No |
| Number of inputs: | 4 |
| Long range network: | Distance (depends on local condition) Up to 80 m indoors (262 ft.) or up to 1000 m outdoors (3281 ft.) |
| Z-Wave ® repeater: | No |
| Z-Wave ® frequency bands: | 864 MHz |
| Mesh network: | Distance (depends on local condition) Up to 40 m indoors (131 ft.) |
| Z-Wave ® repeater: | Yes |
| Z-Wave ® frequency bands: | 868.4 MHz |
| CPU: | Z-Wave ® S800 |
| Maximum radio frequency power transmitted in frequency band(s): | < 25 mW |

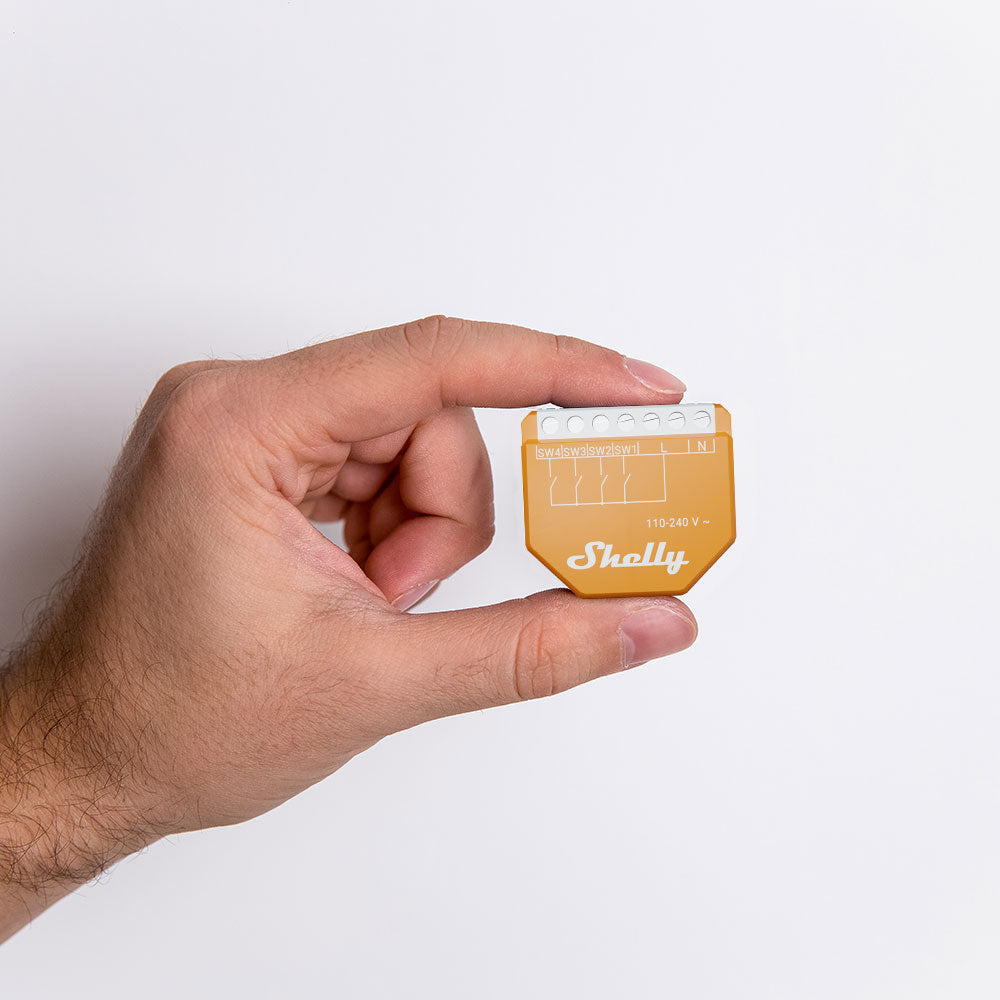

| Size (H x W x D): | 37x42x16 ± 0.5 mm / 1.46×1.65×0.63 ± 0.02 in |
| Weight: | 17 g / 0.6 oz |
| Mounting: | In-wall box |
| Screw terminals max. torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Conductor stripped length: | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material: | Plastic |
| Color: | Orange |
| Ambient temperature: | -20°C to 40°C / -5°F to 105°F |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft. |
| Fig. 1: | Fig. 2 Fig. 3 |
| Comment: | Overheat detected |
| Z-Wave Notification Type Name: | Heat Alarm |
| Z-Wave Notification type – Value: | 0x04 |
| Z-Wave Notification type – Event: | State |
| Z-Wave Notification Name: | Overheat detected |
| Z-Wave Notification Name – Value: | 0x02 |
| Z-Wave Notification Name – Version: | V2 |
| LED signalization: | Check LED signalization table |
| Device reaction – Switch OFF all outputs and send notification: | Yes |
| Action to restore – power cycle: | Yes |
| Action to restore – short press on S button: | Yes |
| Action to restore – press any switch-push button connected to any SW (SW, SW1, SW2, …) terminal: | Yes |
| Wave i4 | |
| Gateway: | D Control 1 D Control 2 D Control 3 D Control 4 D Binary1 D Binary 2 D Binary 3 D Binary 4 Notes |
| Fibaro HC 3 / Z-Wave engine 3 | |
| Homey: | *H |
| Homee Cube Gen 7 | |
| Homee Cube Gen 5: | ❌ ❌ ❌ ❌ ❌ ❌ ❌ ❌ *1 |
| Smart Things: | with the Shelly Wave edge driver |
| Vera Ezlo: | ❌ ❌ ❌ ❌ *2 |
| Cozify | |
| Notes: | *1 not possible to use the central scene in automation either or association, no use for this gateway. *2 does not have the capability to detect the different presses (CC control scene feature missing) *H Troubles with reports can be solved with this solution . |
| Function: | Meaning / tested |
| On/Off: | if device respond to the app UI On/Off command |
| SW On/Off: | if device reports On/Off changes by SW input |
| Dimming: | if device respond to app UI dimming command |
| SW Dimming: | if device report dimming state change by SW input |
| Watts: | if Watts are reported (unsolicited) |
| kWh: | if kWh are reported (unsolicited) |
| Up/Down: | if device respond to the app UI Up/Down command |
| SW Up/Down: | if device reports Up/Down changes by SW input |
| Slats: | if the slats respond to the app UI command |
| SW Slats: | if the slats report the changes done by SW |
| D control: | detached mode if device reports scene commands single press, double press,… |
| D Binary: | detached mode if the device reports binary On/Off by SW input |
| Sensor #: | Is the sensor report visualized in the gateway, type of sensor in the notes. |
| Legend | |
| Symbol: | State |
| Working / Possible | |
| ❌: | Not Working / Not Possible |
| P: | Partially |
| N/T: | Not Tested |
| TBD: | To be done |
