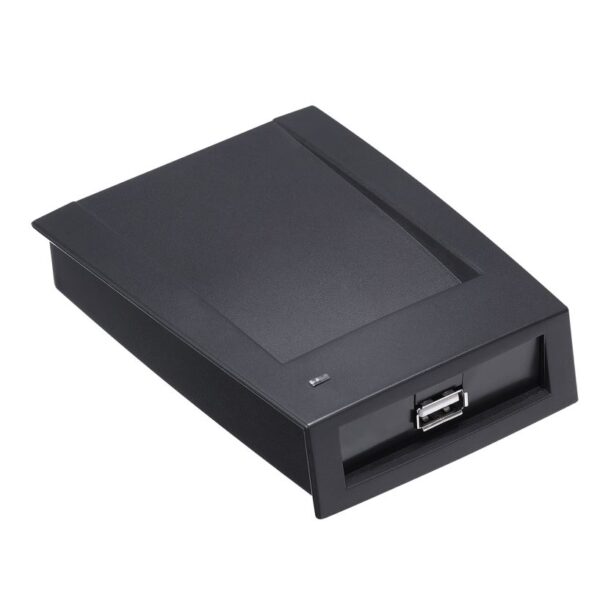

Modulo USB enrollment card 125 kHz
Modulo USB enrollment lettore card da 125 kHz per controllo accessi, alimentazione 5 Vdc
Datasheet
| System | |
| Main Processor | Embedded Processor |
| Basic | |
| Status Indicator Light | 1 (Green: Normal; red: abnormal) |
| Casing | PC+ABS |
| Buzzer | Yes |
| Communication Mode | Issues ID cards |
| Prompt of Succeeded in | Card issuer is solid green and buzzer sounds for 1 s |
| Prompt of Failed to Issue | Card issuer flashes red and buzzer sounds 3 times |
| Card | |
| Card Reading Frequency | 125 KHz |
| Card Issuing Distance | 3 cm–5 cm (1.18"–1.97") |
| Network Update | Yes |
| First-Card Unlock | Yes |
| Remote Verification | Yes |
| Blocklist/Allowlist | Yes |
| Operating Environment | Indoor |
| Gross Weight | 0.18 kg (0.40 lb) |
| Ordering Information | |
| Type | Model Description |
| Card Enrollment | Card enrollment reader for issuing DHI-ASM100-D |
| Reader | ID cards and indoor use |
| Application | |
| Management | Switch |
| Platform | Access Controller Lock Exit Button Card Reader Alarm Light Pictures in the document are for reference only, and the actual product shall prevail. |
