Saldi

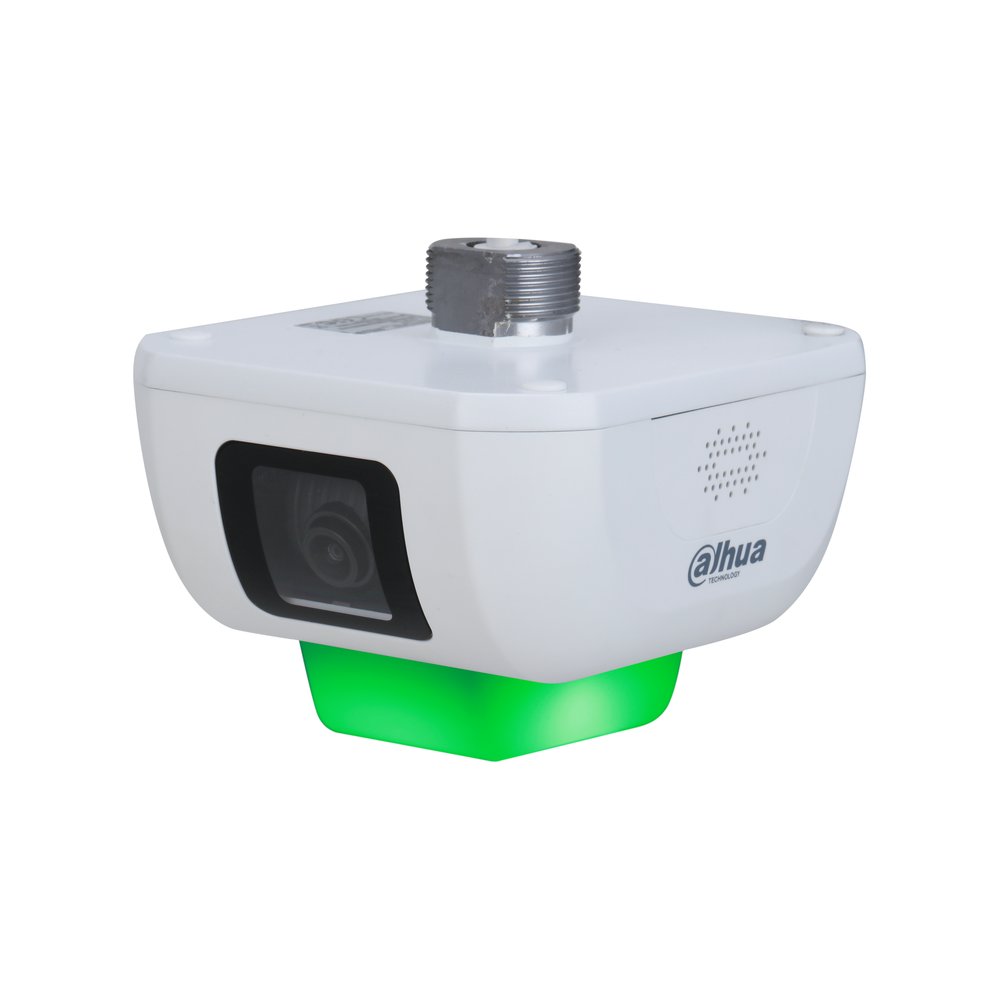

Telecamera parking spot 6 posti 4 MP 2.8 mm

Name: Telecamera parking spot 6 posti 4 MP 2.8 mm
Brand: Dahua
SKU: ITC414-PH5B-TF2
Price: 565.47 EUR
Availability: BackOrder

Dahua

COD: ITC414-PH5B-TF2 Categorie: Controllo Accessi, Sistemi parcheggio e ANPR

565,47 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 1.130,94 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera parking spot (6 posti) IP54, sensore CMOS 1/3", risoluzione 4 MP a 20fps, H.265, ottica fissa 2.8 mm, 2 porte LAN 100 Mbps, 1 porta RS485, 3D, WDR 100 dB, monitoraggio stato 6 parcheggi, indicatore luminoso con 7 colori (rosso, giallo, blu, verde, azzurro, bianco, rosa), rilevamento veicoli, parcheggio illegale, OSD, alimentazione 12~48 Vdc <12 W

Datasheet

Scheda Tecnica

Manuali

Basic
Image Sensor	1/3" CMOS
Max.Detection Space	6 1, 7 customizable colors (red, yellow, blue, green, cyan,
Parking Space Indicator	white, and pink) 2688 (H) × 1520 (V) (OSD black background is not
Image Resolution	calculated in the pixels) 4 MP (2688 × 1520); 1080p (1920 × 1080); 720p (1280 ×
Video Resolution	720); D1 (704 × 576)
Noise Reduction	3D NR
WDR	100 dB
Video Compression	H.265; H.264; MJPEG
Image Encoding Format	JPEG "H.264: 1743 kbps–13946 kbps
Video Bit Rate	H.265: 1743 kbps–13946 kbps MJPEG: 5230 kbps–41838 kbps" "PAL: Main stream (2688 × 1520@20 fps, 1920 × 1080@20 fps, 1280 × 720@20 fps), sub stream (704 × 576@20 fps)
Video Frame Rate	NTSC: Main stream (2688 × 1520@20 fps, 1920 × 1080@20 fps, 1280 × 720@20 fps), sub stream (704 × 576@20 fps)"
Edge Enhancement	Yes Auto; Manual (select from shutter values or customize
Exposure Mode	shutter range) "H: 101.9°
Field of View	V: 54.1° D: 121°"
Lens Angle	Adjustable (depression angle of 10°–34°)
General
Electronic Shutter Speed	Auto/Manual 1/3 s-1/10,000 s
Power Supply	12–48 VDC
Power Consumption	12 W <
Operating Temperature	–20 °C to +50 °C (–4 °F to +122 °F)
Operating Humidity	10%–95% (RH), non-condensing
Protection	IP54 120 mm × 136 mm × 105 mm (4.72" × 5.35" × 4.13") (L
Product Dimensions	× W × H)
Net Weight	0.5 kg (1.10 lb)
Gross Weight	0.7 kg (1.54 lb)
Installation	Cable tray mount
Function
Security	binding, HTTPS encryption, IEEE 802.1x, and network
Access Control
Shutter Mode	Single shutter Time, address, parking space No., parking space status,
OSD Overlay	plate number, vehicle model, vehicle logo and color
Alarm Event	Illegal access, security error and other events
Auto Registration	Yes
Image Tampering	Verifies watermarks in videos and images
Audio
Network Protocol	TCP/IP; HTTP; DHCP; RTSP; NTP; HTTPS
Intelligence
Vehicle Recognition	recognition rate is over 99.5% and plate recognition rate is over 99%
Parking Space Status	Yes, the indicator color is customizable
Detection	Detects illegal parking events including vehicle occupies two parking spaces, non-allowlist vehicle occupies
Illegal Parking Detection	parking space, and small vehicle parked in large vehicle's space.
Port
RS-485	1
Network Port	2 × RJ-45 Ethernet ports, 100 M network transmission
Power Output	12 VDC ± 10% voltage output, ≤1 A current output
Ordering Information
Type	Part Number Description
Parking Space	DHI-ITC414-PH5B- 6 parking spaces, 2.8 mm lens, and 48 VDC
Detection	TF2 power supply over network cable cascade
