Sirena wireless intercom da interno, mircrofono integrato, indicatore luminoso, 1 tasto accensione, 1 tasto antipanico, buzzer, allarme antimanomissione, update remoto tramite cloud, segnalazione batteria scarica, frequenza portante 868~868.6 MHz, comunicazione bidirezionale, crittografia AES128, salto di frequenza, 4 batterie CR123A (durata 3 anni)/12 Vdc
Datasheet
Disegni
| Port | |
| Microphone | Yes. The pickup range is up to 5 m (16.40 ft). |
| Video & Audio | |
| Two-way Audio | Yes. The volume is up to 85 dB. |
| Function | |
| Button | 1 × panic button, 1 × power button |
| Buzzer | Yes |
| Remote Update | Cloud update |
| Low Battery Detection | Yes |
| Tamper | Yes |
| Technical | |
| LED Indicator | Red, blue and green indicators |
| Scenario | Indoor 1.5 A (Max), 20 uA (Standby) (Battery 3V); |
| Operating Current | 0.4 A (Max), 1.5mA (Standby) (DC 12V) |
| Sound and Light Alarm | Yes Volume high 100db (A )1 m |
| Sound Pressure | Volume minimum 77.6 db (A)1 m |
| General | |
| Power Supply | 4 × CR123A battery/9-15 VDC |
| Battery Model | CR123A 3 years (when triggered once every 2 weeks and alarms |
| Standby Time | for 120 sec). |
| Power Consumption | 4.5 W (Max), 0.4 mW (Standby) |
| Operating Temperature | -10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
| Operating Humidity | 10%–90% (RH) 133.0 mm × 133.0 mm × 35.5 mm (5.24" × 5.24" × |
| Product Dimensions | ） 1.40" |
| Net Weight | 377 g (0.83 lb) |
| Gross Weight | 507 g (1.12 lb) |
| Installation | Wall mount |
| Casing Material | PC + ABS |
| Appearance Color | White CE EN 50131-1:2006+A1:2009+A2:2017+A3:2020 EN 50131-4:2019 |
| Certifications | |
| Anti-corrosion Level | Basic Protection |
| Storage Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Humidity | 10%–90% (RH) ） 170 mm × 166 mm × 55 mm (6.69" × 6.54" × 2.71" |
| Ordering Information | |
| Type | Model Description |

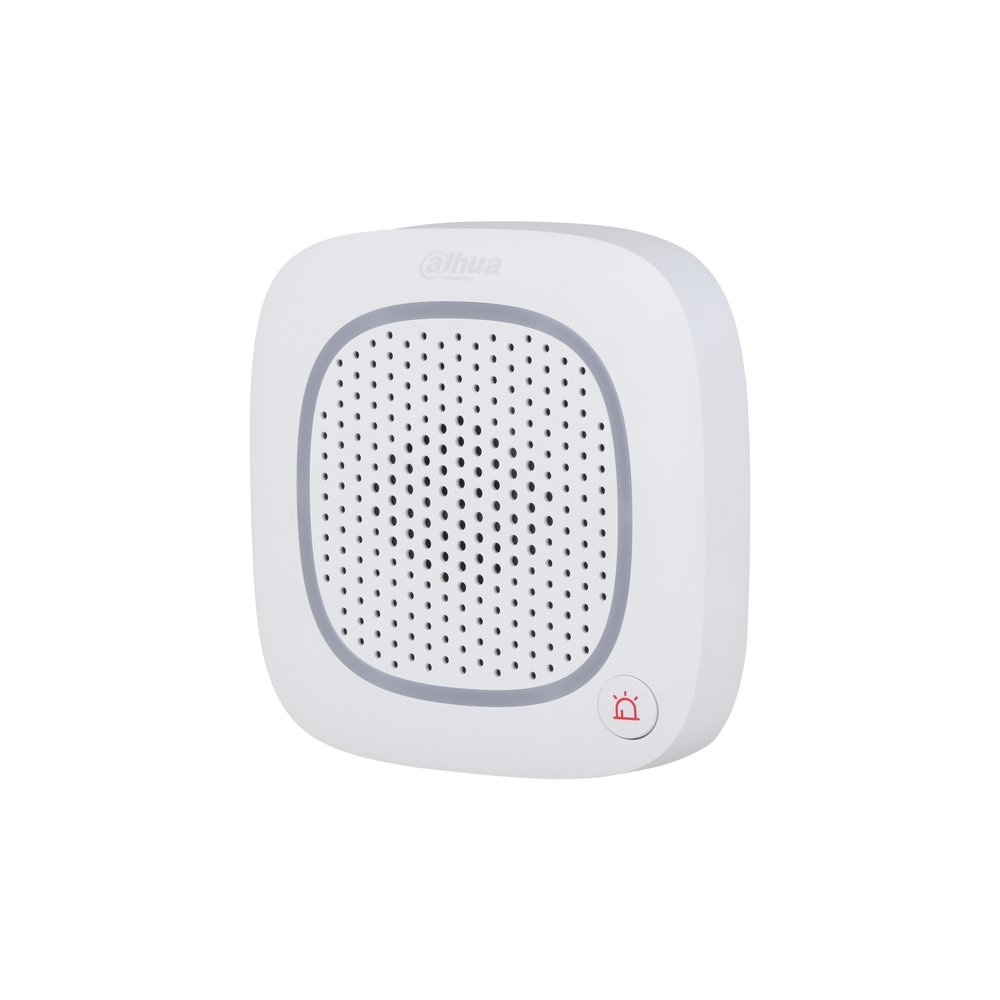

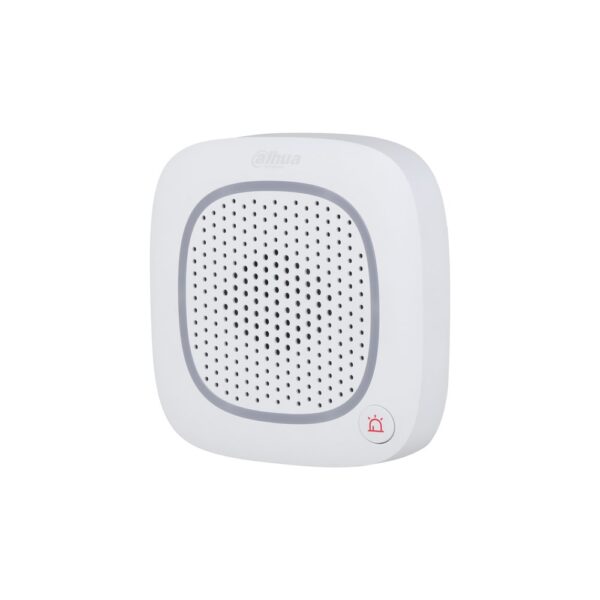

| Wireless Intercom Siren | DHI-ARA14-W2(868) Wireless Intercom Siren |
| Dimensions (Mm[Inch]) | |
| /n | Pictures in the document are for reference only, and the actual product shall prevail. |
