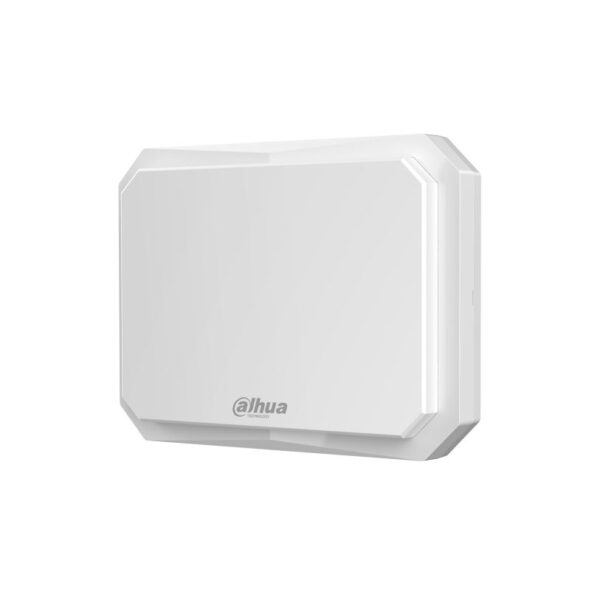

Radar protezione ad area 450 m
Rilevatore radar per protezione ad area da interno/esterno IP67 antivandalo IK10, portata rilevamento 450 m, angolo rilevamento 90° (H), 13° (V), range velocità rilevate 1.8~80 km/h, accuratezza ±1.5 m e ±1°, 10 aree, frequenza scansione 8 Hz, frequenza operativa 24 GHz, collegamento con allarmi, PTZ e smart tracking, card SD, certificazione CE RED, indicatori luminosi di stato, alimentazione 12 Vdc/24 Vac/PoE <24 W
Datasheet
| Functions | |
| 24/7 All-Weather | Color Optical Defog Target Filtering High Accuracy Radar-PTZ Linkage Front-end PTZ Control |
| Centralized | IK10 IP67 Smart Tracking CE RED |
| Performance | |
| Max. Number of Targets | 32 Human: 450.0 m (1476.38 ft) |
| Detection Distance | Vehicle: 600.0 m (1968.50 ft) Horizontal: 90° |
| Detection Angle | Vertical: 13° |
| Max. Detection Speed | 80 km/h, continuous trajectory |
| Min. Detection Speed | 1.8 km/h, continuous trajectory |
| Distance Accuracy | ± 1.5 m (± 4.92 ft) |
| Angle Accuracy | ± 1° |
| Max. Number of Areas | 10 |
| Modulation Type | FMCW |
| Scan Frequency | 8 Hz |
| Operating Frequency | 24 GHz |
| Detection Target Type | Human and vehicle |
| Function | |
| Radar+PTZ Smart Tracking | Supported on web manager |
| Track Mode | Tour, distance priority, and time priority |
| Region Setting | Alarm area, pre-warning area, and shield area |
| Target Filtering | Human and vehicle filtering Manual record, scheduled record, and alarm record |
| Record Mode | Record priority: Manual>Alarm>Scheduled |
| Restore to Factory Default | Restore to default settings with one click Authorized username and password, MAC address |
| Security | binding, HTTPS encryption, IEEE 802.1x, and network access control |
| Positioning | GPS, Glonass |
| Map Encoding | Yes |
| Network | |
| Ethernet | RJ-45 (10Base-T/100Base-TX) IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, |
| Protocol | |
| Interoperability | ONVIF Profile S&G, CGI |
| User Management | 19 |
| Storage | |
| Browser | Google: Versions earlier than Chrome45 Firefox: Versions earlier than Firefox46 |
| Management Software | SmartPSS, DSS |
| Port | |
| Alarm Input | current) 5 channels (wet contact; support max 12V DC |
| Alarm Output | potential and max 300mA current) |
| Alarm Linkage | triggering output, electronic map displaying, and email sending Radar alarm, no SD card, insufficient SD card |
| Alarm Event | storage, SD card error, network disconnection, IP conflict, full disk, and illegal access |
| SD Card | Yes Network connection: Yellow |
| Indicator Light | Running status: Red/Green Power: Green |
| Power | |
| Power Supply | DC 12V (±30%), AC 24V (±30%), PoE (802.3at) Basic: 20W |
| Power Consumption | Max.: 24W |
| Environment | |
| Operating Temperature | –40°C to +65°C (–40°F to +149°F) |
| Operating Humidity | ≤95% (RH) |
| Storage Temperature | –40°C to +80°C (–40°F to +176°F) |
| Storage Humidity | ≤95% (RH) |
| Protection Grade | IP67/IK10 Contact discharge: 6k |
| ESD | Air discharge: 8k Common mode: ± 6kV |
| Surge Protection Grade | Differential Mode: ± 2kV |
| General | |
| Product Color | White |
| Casing | ADC12+PC 244.9 mm × 184.9 mm × 61.2 mm |
| Product Dimensions | (9.64" × 7.28" × 2.41") 328.0 mm × 146.0 mm × 278.0 mm |
| Packaging Dimensions | (12.90"×5.75" × 10.95") |
| Net Weight | 2.0 kg (4.41 lb) |
| Gross Weight | 3.2 kg (7.06 lb) |
| Installation Method | Wall mount, ceiling mount, pole mount 3.0 m to 5.0 m (3.0 m recommended) (9.84 ft to |
| Installation Height | 16.40 ft) (9.84 ft recommended) |
| Installation Position | Install separately |
| Package Information | |
| Security radar | 1 |
| Waterproof connector for | 1 |
| Wrench | 1 |
| Quick start guide | 1 |
| Quality certificate | 1 |
| Legal and regulatory | 1 |
| QR code label | 1 |
| Ordering Information | |
| Type | Model Description |
| Radar | DH-PFR4K-D450 450m security radar Radar bracket, support wall mount and DH-PFB510W ceiling mount |
| Bracket | Pole mount bracket, support vertical or DH-PFA150 horizontal pole mount DH-PFA151 Corner mount bracket |
| Optional: | |
| DH-PFB510W | DH-PFB510W DH-PFB510W+DH-PFA151 DH-PFA150+DH-PFB510W |
| Vertical | Horizontal |
| Range Coverage Diagram | |
| Human | 0° 15° |
| Vehicle | 30° 45° 60° 75° 90° 0 100 200 300 400 500 600 |
