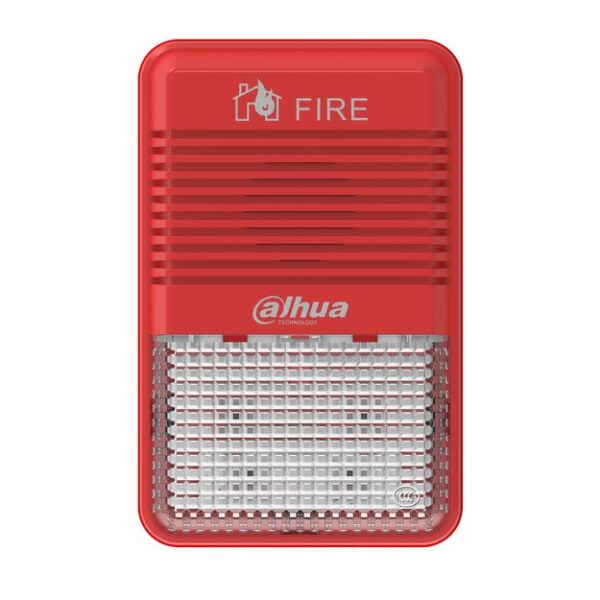

Avvisatore ottico-acustico indirizzabile (senza base), 24 Vdc, volume allarme 75-115 dB, conforme alle norme EN 54-3 ed EN 54-23
| Scene | |
| Working Voltage | DC24V Monitoring current: ≤ 270μA |
| Working Current | Maximum operating current: ≤ 7mA |
| Wiring | Two-wire, polarity-free |
| Addressing Method | Electrical encoder |
| Address Range | 1–254 |
| Alarm Volume | 75 dB–115 dB @ 3 m (A) |
| Modulation Cycle | 4 s–5 s |
| Flash Rate | 1.5Hz–2.0Hz |
| Communication | 1500 m (4921.26 ft) |
| Operating Temperature | –10°C to +55°C (+14°F to +131°F) |
| Storage Temperature | –20°C to +65°C (–4°F to +149°F) |
| Operating Humidity | ≤ 95% RH (no condensation) Shell: Red |
| Color | Lampshade: Clear white |
| Dimensions | 125 mm × 80 mm × 40 mm (4.92" × 3.15" × 1.57") |
| Weight (with base) | 118 g (0.26 lb) |
| Compliance Standard | EN54-3, EN54-23 |
| Ordering Information | |
| Type | Model Description |
| Addressable Sounder | DHI-HY-1500 Addressable SounderStrobe |
