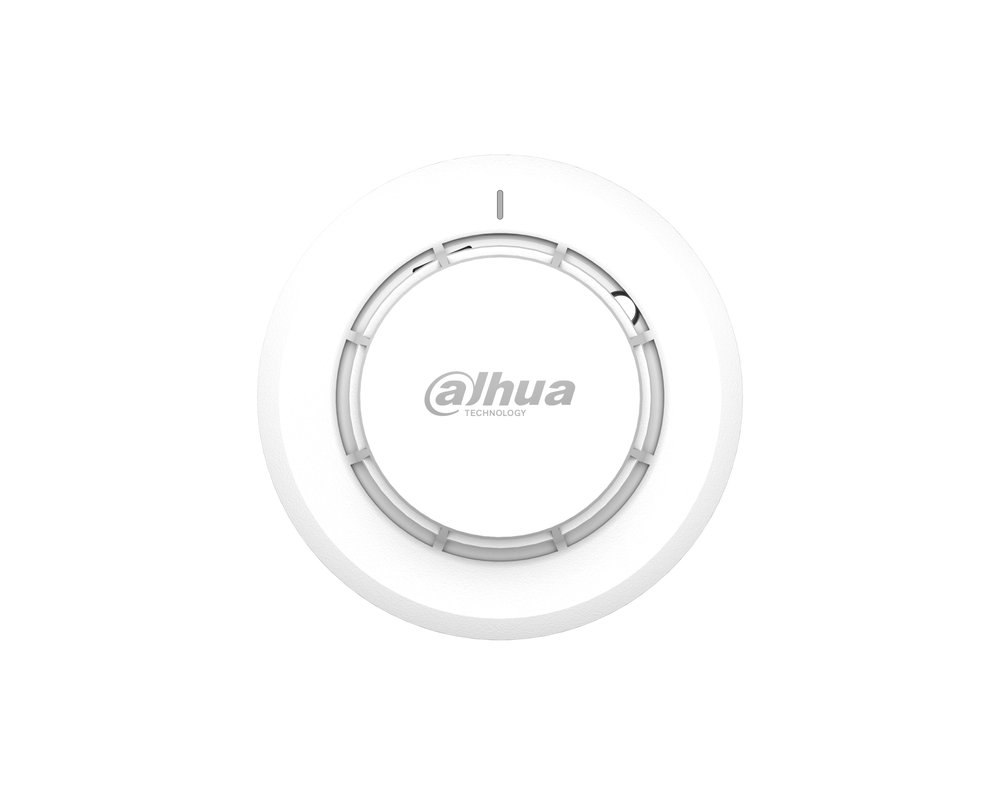

Rivelatore di fumo indirizzato
Codice produttore: DHI-HY-2301
Datasheet
Manuali
| Scene | |
| Surveillance Area | For installation heights between 4 m and 12 m, the coverage area is 80 m² |
| Remote Indicator | Support |
| Working Principle | Smoke detection |
| Alarm Mode | Indicator light alarm |
| Operating Voltage | DC16-28V Static current: ≤350μA |
| Operating Current | Alarm current: ≤450μA |
| Operating Temperature | –10°C to +50°C (14°F to 122°F) |
| Operating Humidity | ≤ 95% RH (no condensation) |
| Dimensions | (with base) Φ100 mm × 46.3 mm (Φ 3.94" × 1.82") |
| (with base) | 96 g (0.21 lb) |
| Installation | Ceiling Mount |
| Compliance Standard | EN 54-7 |
| Ordering Information | |
| Type | Model Description |
| Detector | DHI-HY-2301 Detector Pictures in the document are for reference only, and the actual product shall prevail. |
