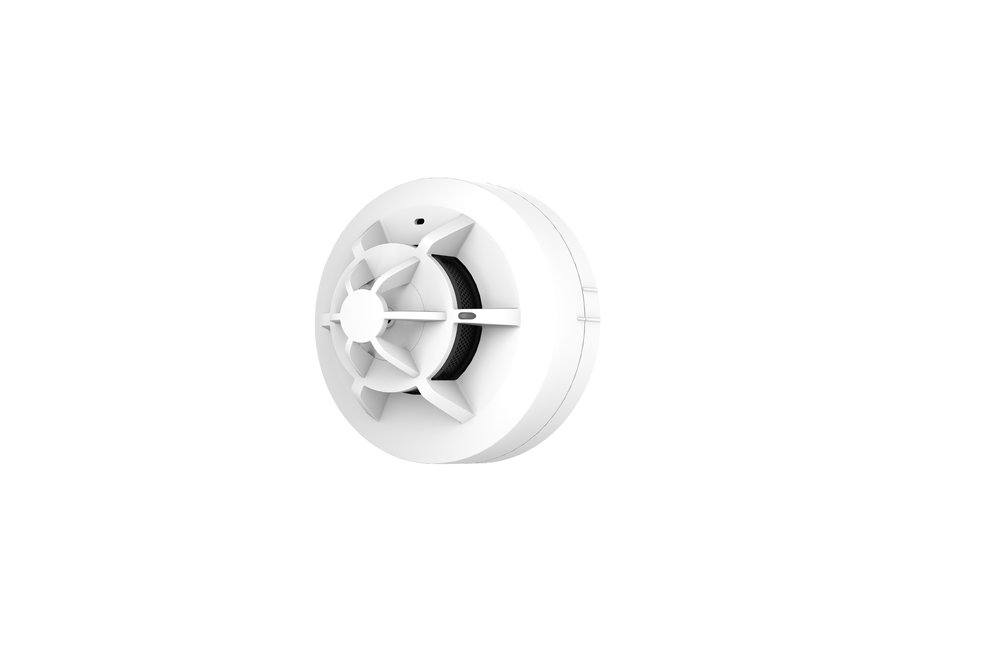

Rivelatore combinato (fumo e calore) indirizzabile (senza base), 24 Vdc, conforme alle norme EN 54-5 ed EN54-7
| Power | |
| Current | Monitoring current: ≤ 150μA Alarm current: ≤ 240μA Red Polling: Flash 6 seconds |
| Indicator | Alarm: Remain lit Fault: Flash 2 seconds |
| Alarm Threshold for Heat | A2R (54°C to 62°C)(129°F to 144°F) |
| Wiring | Two-wire, polarity-free |
| Addressing Method | Electrical encoder |
| Address Range | 1–254 |
| Communication Distance | ≤ 1500 m (4921.26 ft) |
| Operating Temperature | –10°C to +50°C (+14°F to +122°F) |
| Storage Temperature | –20°C to +65°C (–4°F to +149°F) |
| Operating Humidity | ≤ 95% RH (no condensation) |
| Color | White |
| Dimensions | (with base) Φ 100 mm × 68.7 mm (Φ 3.00" × 2.70") |
| (with base) | 106.3 g (0.23 lb) |
| Compliance Standard | EN54-5, EN54-7 |
| Dimensions (Mm/Inch) | |
| Φ100 [3.93] | 7.0 [0.28] Φ4.4 [0.17] 68.7 [2.70] 53.0 [2.09] |
| Ordering Information | |
| Type | Model Description |
| Addressable Multi-sensor | Addressable Multi-sensor DHI-HY-1320 |
| Detector | Smoke and Heat Detector |
