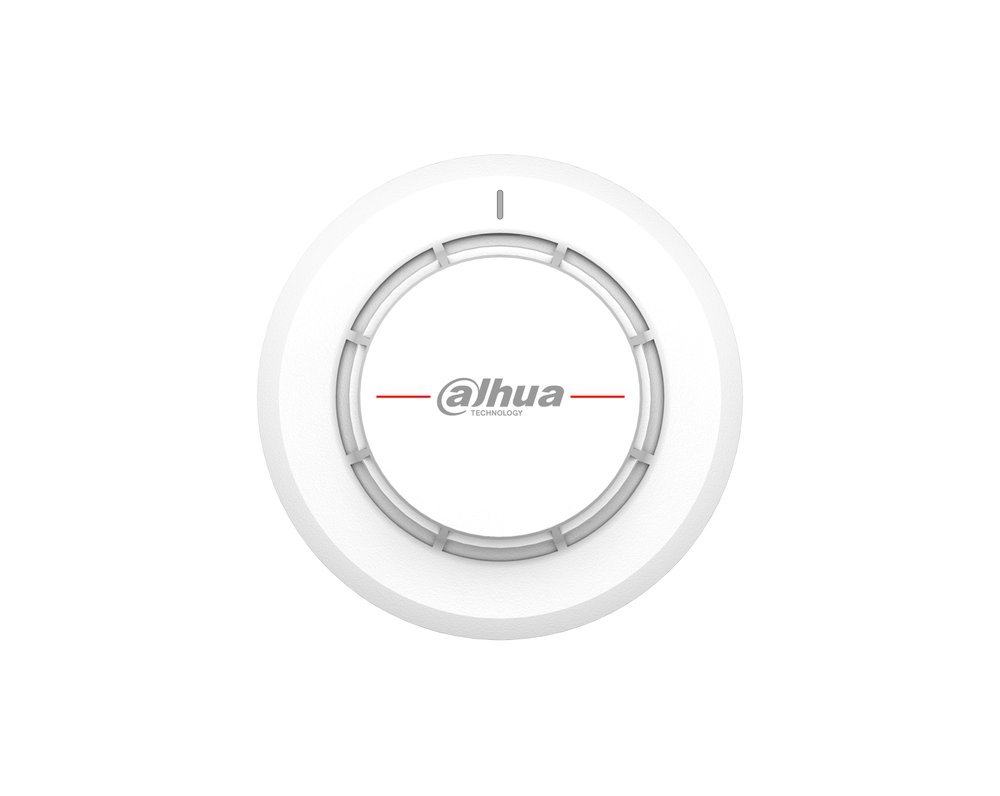

Rivelatore di calore convenzionale
Codice produttore: DHI-HY-C136
Datasheet
Manuali
| Scene | |
| Protection Area | For installation heights between 4 m and 12 m, the coverage area is 80 m² |
| Remote Indicator | Support |
| Working Principle | Heat detection |
| Sensor Class | A2R |
| Fixed Detection Threshold | 62°C ± 3°C (144°F ± 37.4°F) |
| Dynamic Detection | 1 to 30 K min -1 |
| Alarm Mode | Indicator light alarm |
| Operating Voltage | DC 24V Static current: ≤ 55μA |
| Operating Current | Alarm current: ≤ 25mA |
| Operating Temperature | –10°C to +50°C (14°F to 122°F) |
| Operating Humidity | ≤ 95% RH (no condensation) |
| Dimensions | (with base) Φ100 mm × 46.3 mm (Φ 3.94" × 1.82") |
| (with base) | 102 g (0.22 lb) |
| Installation | Ceiling Mount |
| Compliance Standard | EN54-5 |
| Response Time Limits | |
| Rise of Air | Lower Limit of Response Time Upper Limit of Response Time |
| K min | min s min s |
| 1 | 29 0 46 0 |
| 3 | 7 13 16 0 |
| 5 | 4 9 10 0 |
| 10 | 2 0 5 30 |
| 20 | 1 0 3 13 |
| 30 | 40 2 25 |
| Ordering Information | |
| Type | Model Description |
| Conventional Heat Detector | DHI-HY-C136 Conventional Heat Detector Pictures in the document are for reference only, and the actual product shall prevail. |
