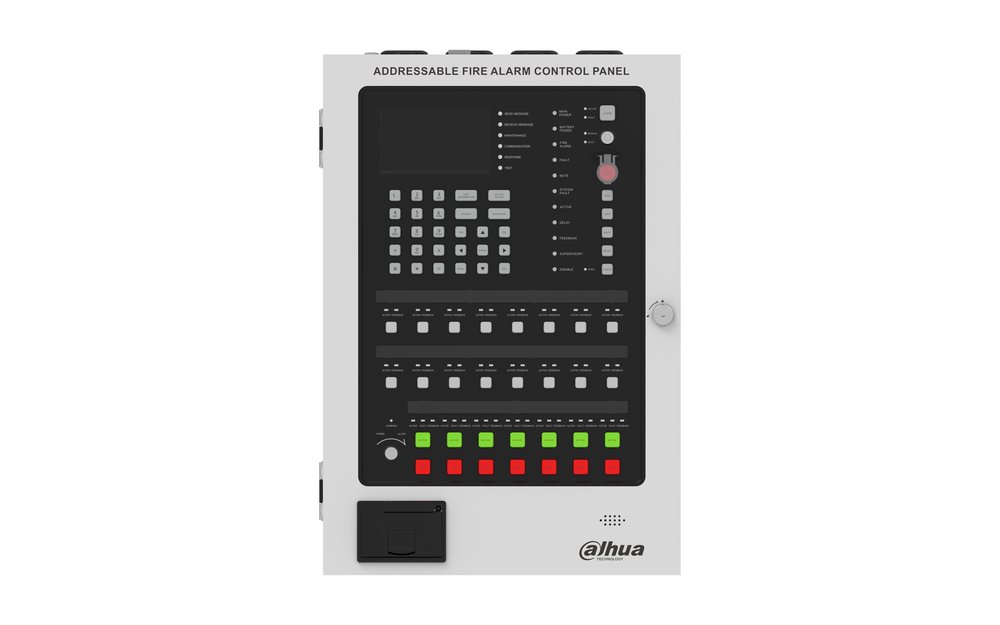

Centrale allarme incendio indirizzabile 1 loop
1.024,80 € IVA inclusa
Centrale di allarme incendio indirizzabile 1 loop (max. 256 device) IP30, tensione operativa interna 16-28 Vdc, alimentazione 90-240 Vac, display LCD 4.3″ 480×272, conforme alle norme EN 54-2 ed EN 54-4
Datasheet
Documentazione
Manuali
| General | |
| Working Voltage | 16V DC–28V DC |
| System Capacity | Max. 254 devices for one loop |
| Main Power | AC90-240V/50Hz, 60Hz |
| Backup Power | 2×12V/5Ah lead-acid battery |
| Log Record | Max. 2048 |
| Fire Alarm Terminal | NO/NC |
| Fire Fault Terminal | NO/NC |
| Communication | Max. 1500m |
| Max Cascade | 128 Panels By RS-485 |
| Cable Specs | 2×1.5 mm² |
| Display | |
| Printer (optional) | Micro thermal printer |
| Dimensions | 333.0 mm×115.0 mm×480.0 mm (13.11" × 4.53" × 18.90") |
| Operating Temperature | –10°C to +40°C (+14°F to +104°F) |
| Operating Humidity | ≤ 95% RH (no condensation) |
| Protection Grade | IP30 7 kg |
| Weight | 10 kg (with 2 batteries) |
| Compliance Standard | EN54-2, EN54-4 |
| System Specification | 1 loop for DHI-HY-1022(R) |
| Loop Number | 2 loops for DHI-HY-1025(R) Class A for DHI-HY-1022R and DHI-HY-1025R |
| Topology Mode | Class B for DHI-HY-1022 and DHI-HY-1025 |
| Loop Capability | Max. 254 sensors and modules for each loop |
| Optional Buit-in Micro | Option 1: With printer by default |
| Thermal Printer | Option 2: Without printer by default Every 32 addresses form a zone |
| Simulated Zone | Applicable only to panels with a printer |
| Panel Cascading | Max. 128 panels to cascade With the help of Dahua Fire (Wisualarm) Presale Tool Performance Limitations |
| Solution Verification | Communication Distance Required Battery Specifications |
| Configurable Alarm | With the help of ControlConfig Tool |
| Linkage | Online Solution: Wisualarm Cloud Platform |
| Solution | Local Solution: DSS Pro Platform V8.5-V8.7 (Server is required) |
| Compatible Cable | 2X1.5mm² /2X16AWG |
| Communication | 1500m (standard) – 3000m (extendable) |
| Telephone&Broadcast | Optional peripheral system |
| Panel Overview | |
| 2 | 8 |
| 3 | 7 4 5 6 1 Main control board 2 Light key board 、 ； 、 3 Direct control board 4 Speaker 、 ； 、 5 Printer 6 Battery 、 ； 、 |
| Ordering Information | |
| Model | Part number Description |
| DHI-HY-1022R | 1.0.01.36.16632 1 Loop Addressable FACP with Printer |
| DHI-HY-1025R | 1.0.01.36.16633 2 Loops Addressable FACP with Printer |
| DHI-HY-1022R | 1.0.01.36.16634 1 Loop Addressable FACP without Printer |
| DHI-HY-1025R | 1.0.01.36.16635 2 Loops Addressable FACP without Printer |
