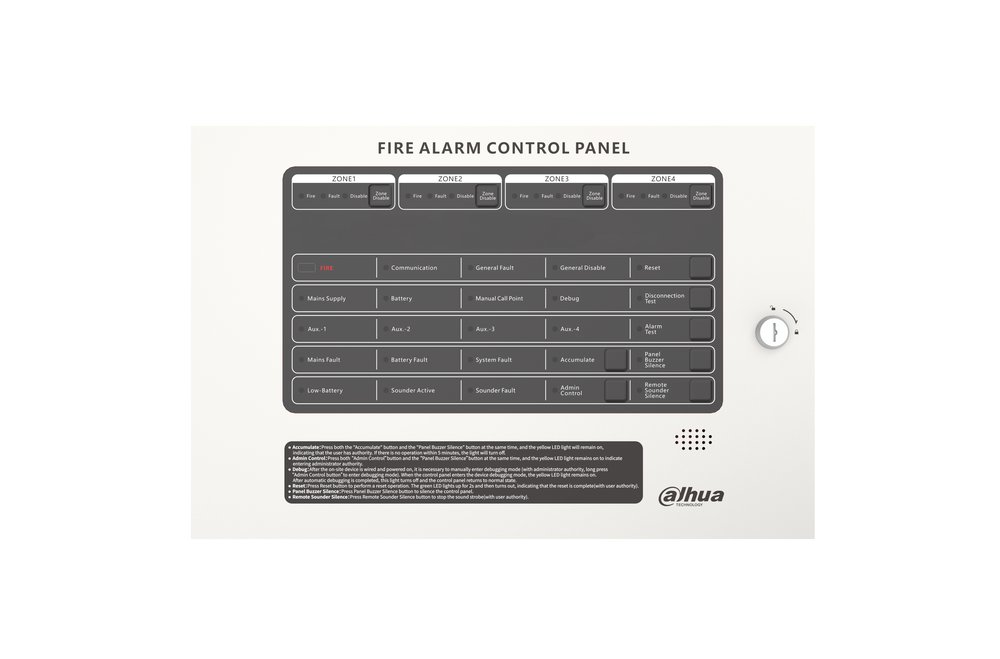

Centrale di controllo convenzionale con cabinet large IP30 a 4 zone, 100-240 Vac, conforme alle norme EN 54-2 ed EN 54-4
Datasheet
Manuali
| Scene | |
| Number of Zones | 4 |
| Zone Capacity | 25 detectors per zone |
| Main Power | AC100-240V/50Hz, 60Hz |
| Backup Power | 2×12V 7Ah battery (optional) |
| Output Current | 1A Fault: 50dB |
| Output | Alarm: 60dB |
| Fire Bell Output | DC 28V/500mA |
| Dimensions | 400.0 mm×92.2 mm×265.0 mm (15.75" × 3.63" × 10.43") 3.45 kg |
| Weight | 7.4 kg (with 2 batteries) |
| Operating Temperature | –10°C to +50°C (+14°F to +122°F) |
| Operating Humidity | ≤ 95% RH (no condensation) |
| Protection Grade | IP30 |
| Installation | Wall mount |
| Compliance Standard | EN54-2, EN54-4 Three types: 1. Black and white |
| Color Options | 2. Red and white 3. Red and black |
| Ordering Information | |
| Type | Model Description |
| Conventional Fire | Conventional Fire Alarm Control DHI-HY-C102-4 |
| Alarm Control Panel | Panel Pictures in the document are for reference only, and the actual product shall prevail. |
