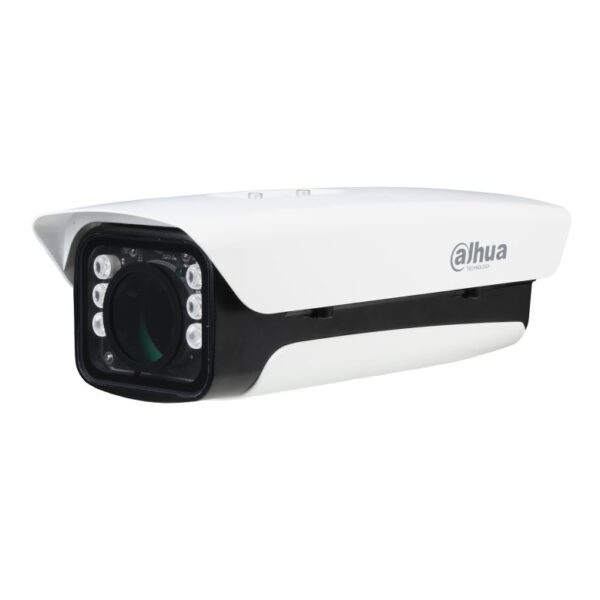

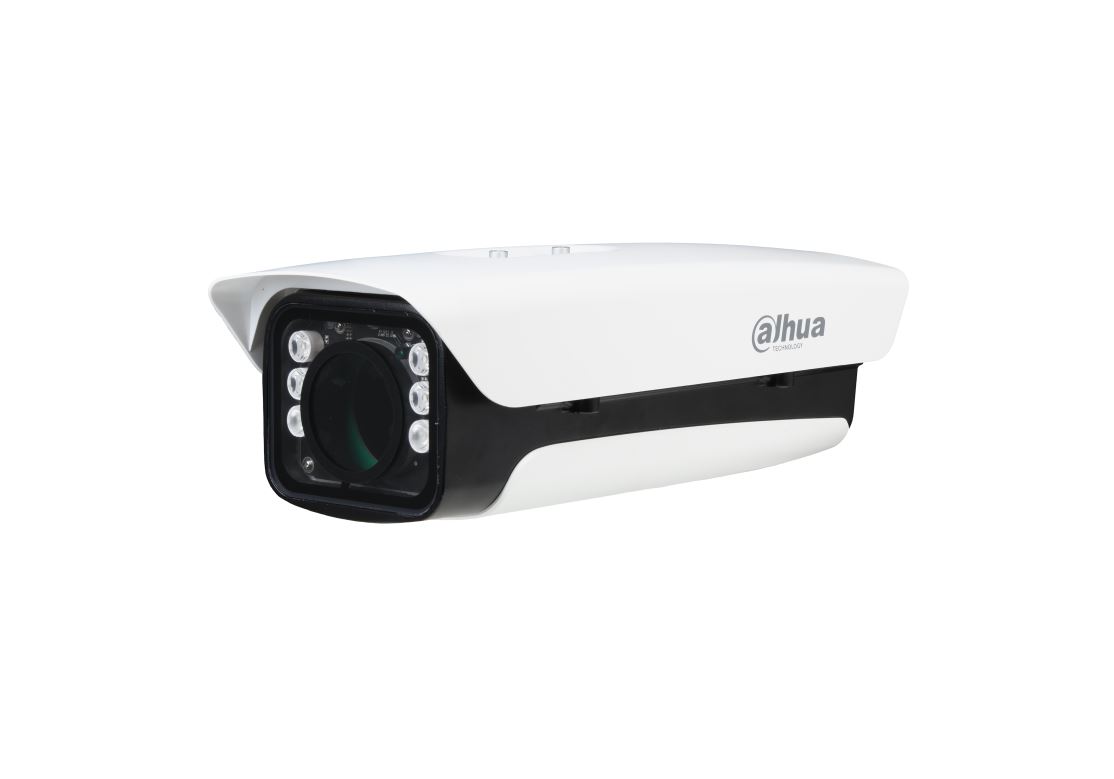

Custodia IP66 IK10 IR heater PoE+
Custodia in alluminio IP66 IK10 con heater, portata IR 100 m, 1 ingresso allarme per controllo tergiottica e 2 uscite allarme per controllo feedback IR e moduli washer, temperatura di esercizio -40°~+60°C, alimentazione 12 Vdc/PoE+ <14 W
Datasheet
| Function | |
| Auto Temperature Control | Cooling mode: ON: ≥+20 ºC (+68 °F)/OFF: <+20 ºC (+68 °F) |
| IR Light | 0 m–100 m (0 ft–328.08 ft) |
| Sprinkling Control | Yes |
| Protection | |
| Vanda-proof | IK10 |
| Protection | IP66 Common mode: ±4 kV |
| Surge Protection Grade | Different mode: ± 2 kV |
| Power | |
| Power Consumption | 14 W (without camera) |
| Power Supply | PoE+ |
| Power Supply for Camera | PoE/12 VDC |
| Port | |
| RS-485 | 1, used to control the IR light |
| Alarm Input Port | 1, used to control the wiper |
| Alarm Output Port | 2, used to control IR feedback and washer modules |
| DIP Switch | Yes |
| Appearance Color | White |
| Window Dimensions | Φ59.4 mm (Φ2.34") 255 mm × 90 mm × 70.5 mm (10.04" × 3.54" × 2.78") (L × W × H) |
| Internal Usable Space | 215 mm × 90 mm × 83 mm (8.46" × 3.54" × 3.27") (L × W × H) |
| Net Weight | 3.1 kg (6.83 lb) |
| Gross Weight | 3.6 kg (7.94 lb) Wall mount, ceiling mount, plane mount, pole |
| Installation | mount |
| Screw Thread Type | G1/2 |
| Applicable Model | Please see "Camera Accessories Selection" 447.0 mm × 240.0 mm × 234.0 mm (17.60" × 9.45" |
| Packaging Dimensions | × 9.21") (L × W × H) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <90% (RH) |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | 10%–90% (RH) |
| Dimensions (Mm[Inch]) | |
| 2-M6 | 40.0 [1.57] 2-M20 50.0 [1.97] 293.1 [11.54] 45.0 [1.77] 163.8 [6.45] 404.3 [15.92] |
| 131.8 [5.19] | Φ59.4 [Φ2.34] The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
