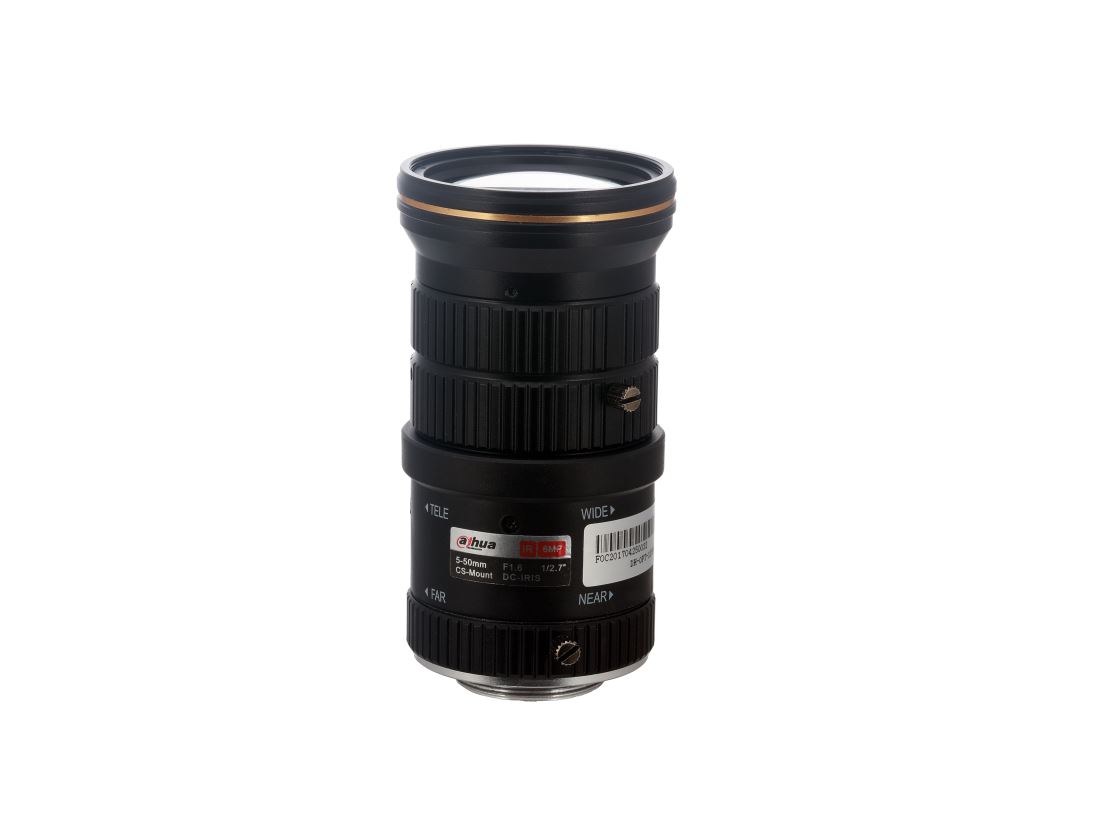

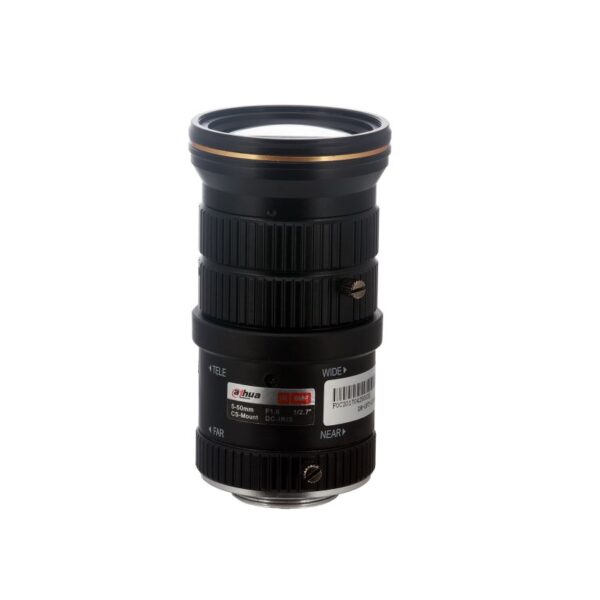

Ottica varifocale 5~50 mm 6 MP
Ottica varifocale 5~50 mm ƒ1.6 da 6 MP, sensore immagine 1/2.7”, CS mount, Iris DC, fuoco manuale
Datasheet
| Performance | |
| Image Sensor Size | 1/2.7"CMOS |
| Focal Length | 5–50 mm |
| Lens Pixel | 6 MP |
| Aperture | F1.6 |
| IR Light | Yes |
| Total Optical Length | 91 mm ± 1 mm (3.54" ± 0.04") (In air) |
| Flange Back Focal Length | 12.53 mm ± 0.2 mm (0.49" ± 0.01") (In air) |
| Mechanical Back Focal | 6.8 mm ± 0.2 mm (0.27" ± 0.01") (In air) |
| Length | W: 65.7° × 49.6° × 36.9° |
| Field of View | T: 8.7° × 7° × 5.2° |
| TV Distortion | –8% @Ф6.6 mm |
| Net Weight | 0.2 kg (0.44 lb) |
| Gross Weight | 0.24 kg (0.53 lb) |
| Packaging Method | 80 in one package |
| Environment | |
| Operating Temperature | –30 °C to +70 °C (–22 °F to +158 °F) |
| Operating Humidity | 95% (RH) |
| Storage Temperature | –40 °C to +80 °C (–40 °F to +176 °F) |
| Storage Humidity | 95% (RH) |
| Ordering Information | |
| Type | Model Description 6 MP 1/2.7" 5-50mm vari- |
| HD Vari-focal Lens | DH-PFL0550-E6D focal lens |
| Dimensions (Mm[Inch]) | |
| /n | Pictures in the document are for reference only, and the actual product shall prevail. |
