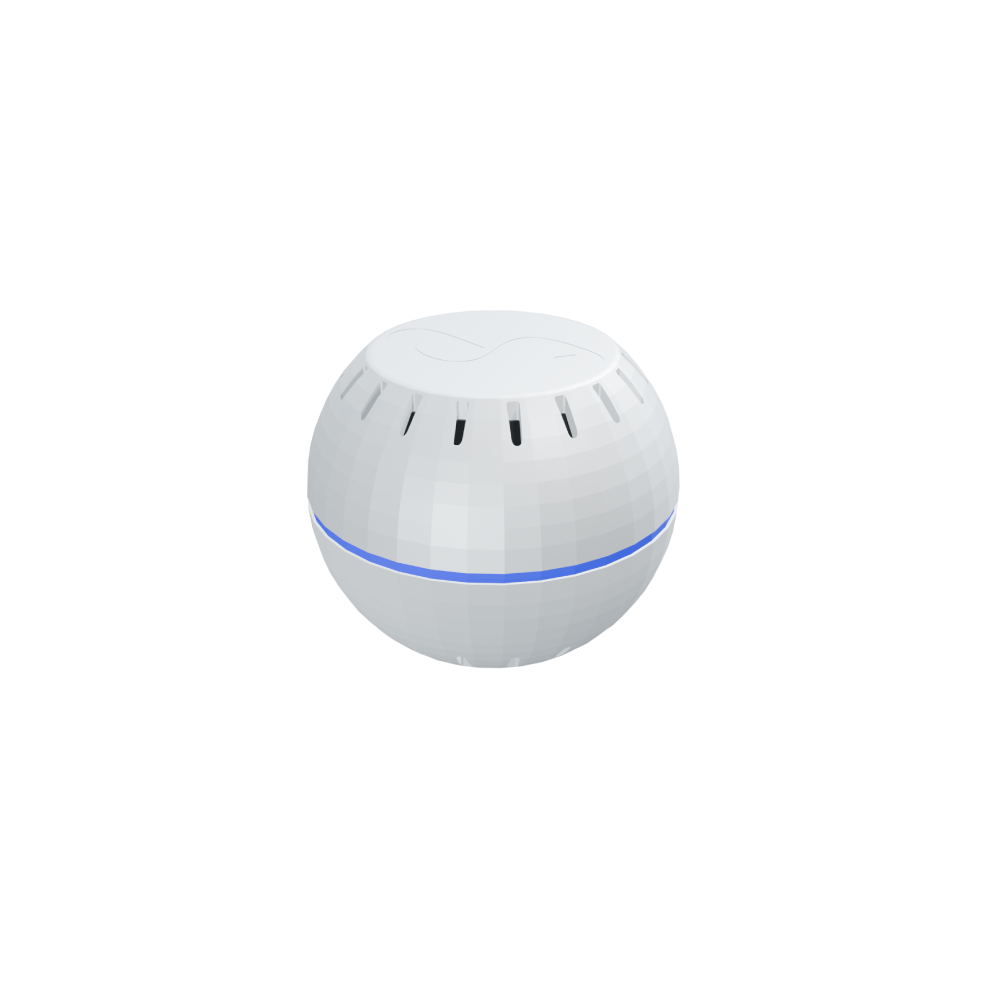

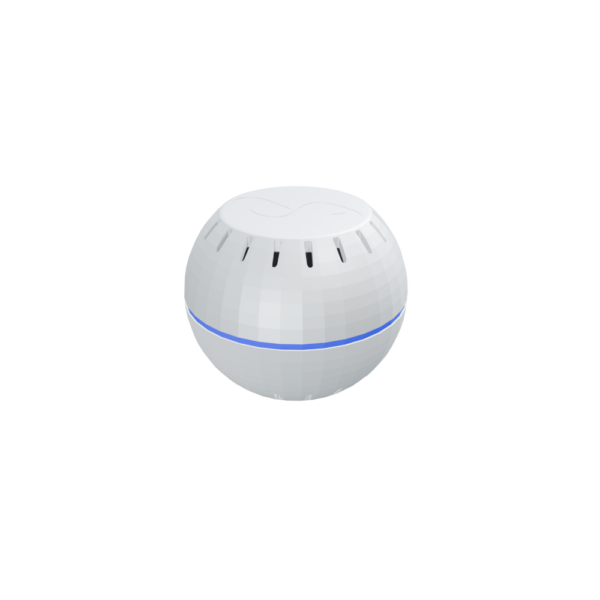

Shelly Wave H&T LR – sensore temperatura e umidità Z-Wave
Sensore di temperatura e umidità in rete Z-Wave, versione a lunga portata: misura l’ambiente e fa scattare le automazioni del clima.
- Misura di temperatura e umidità
- Rete Z-Wave con portata estesa (Long Range)
- A batteria, si posiziona dove serve senza fili
- Adatto a comandare termovalvole e climatizzatori
| LED blinking modes | |
| Mode 1: | 0,5s On/2s Off |
| Mode 2: | 0,5s On/0,5s Off |
| Mode 3: | 0,1s On/0,1s Off |
| Mode 4: | (1x to 6x – 0,2s On/0,2s Off) + 2s Off |
| Mode 5: | 0,2s On blue/0,2s On red |
| Power supply: | 1x 3 V CR123A battery |
| Battery life: | Up to 2 years |
| Humidity sensor: | Yes |
| Temperature sensor: | Yes |
| Long range network: | Distance (depends on local condition) Up to 80 m indoors (262 ft.) or up to 1000 m outdoors (3281 ft.) |
| Z-Wave ® repeater: | No |
| Z-Wave ® frequency bands: | 864 MHz |
| Mesh network: | Distance (depends on local condition) Up to 40 m indoors (131 ft.) |
| Z-Wave ® repeater: | No |
| Z-Wave ® frequency bands: | 868.4 MHz |
| CPU: | Z-Wave ® S800 |
| Maximum radio frequency power transmitted in frequency band(s): | < 25 mW |
| Size (H x W x D): | 35×46 mm / 1.38×1.81 in |
| Weight: | 16 g without battery 33 g with battery |
| Shell material: | Plastic |
| Color: | Black or White |
| Ambient temperature: | -20°C to 40°C / -5°F to 105°F |
| Humidity: | 30% to 70% RH |
| Max. altitude: | N/A |
| Wave H&T: | functions – reports |
| Gateway: | Sensor 1 Temperature Sensor 2 Humidity Notes |
| Smart Things | |
| Vera Ezlo: | TBD TBD |
| Cozify: | TBD TBD |
| Notes: | Sensor 1: Temperature Sensor 2: Humidity |
| Function: | Meaning / tested |
| On/Off: | if device respond to the app UI On/Off command |
| SW On/Off: | if device reports On/Off changes by SW input |
| Dimming: | if device respond to app UI dimming command |
| SW Dimming: | if device report dimming state change by SW input |
| Watts: | if Watts are reported (unsolicited) |
| kWh: | if kWh are reported (unsolicited) |
| Up/Down: | if device respond to the app UI Up/Down command |
| SW Up/Down: | if device reports Up/Down changes by SW input |
| Slats: | if the slats respond to the app UI command |
| SW Slats: | if the slats report the changes done by SW |
| D control: | detached mode if device reports scene commands single press, double press,… |
| D Binary: | detached mode if the device reports binary On/Off by SW input |
| Sensor #: | Is the sensor report visualized in the gateway, type of sensor in the notes. |
| Legend | |
| Symbol: | State |
| Working / Possible | |
| ❌: | Not Working / Not Possible |
| P: | Partially |
| N/T: | Not Tested |
| TBD: | To be done |
