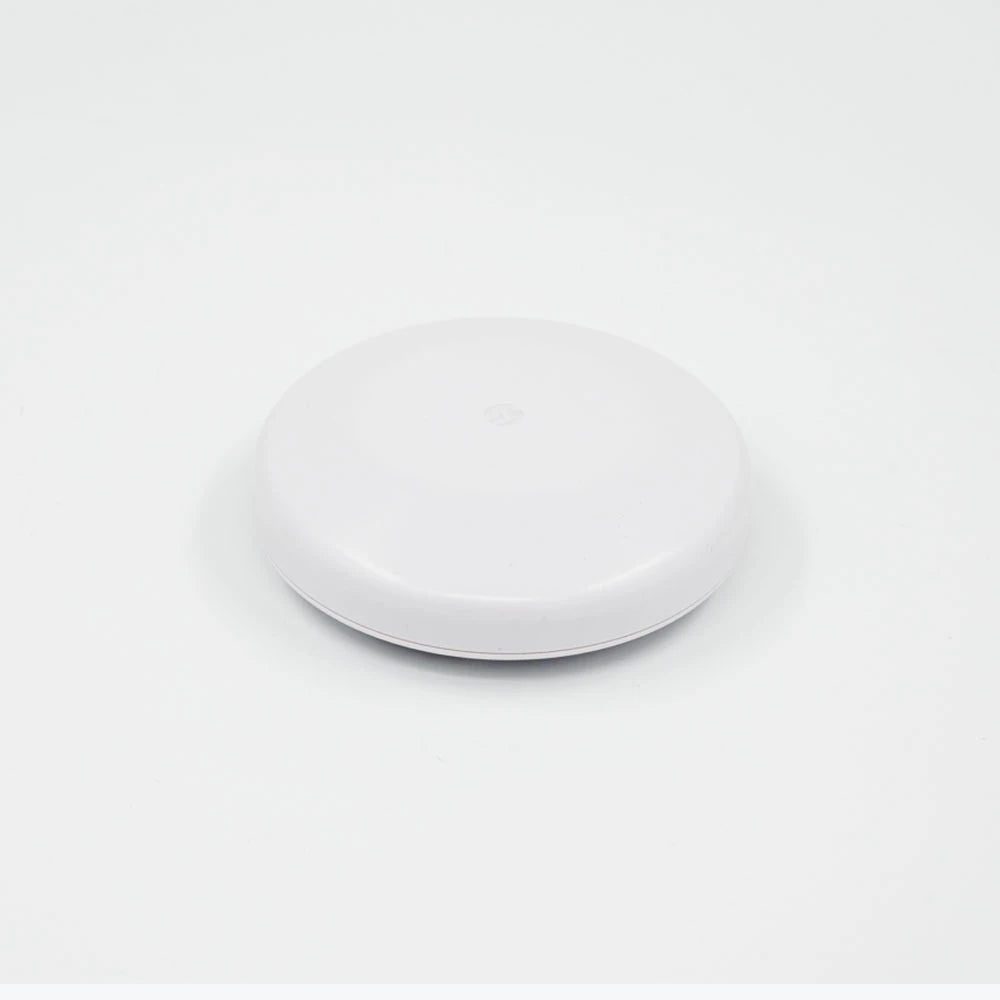

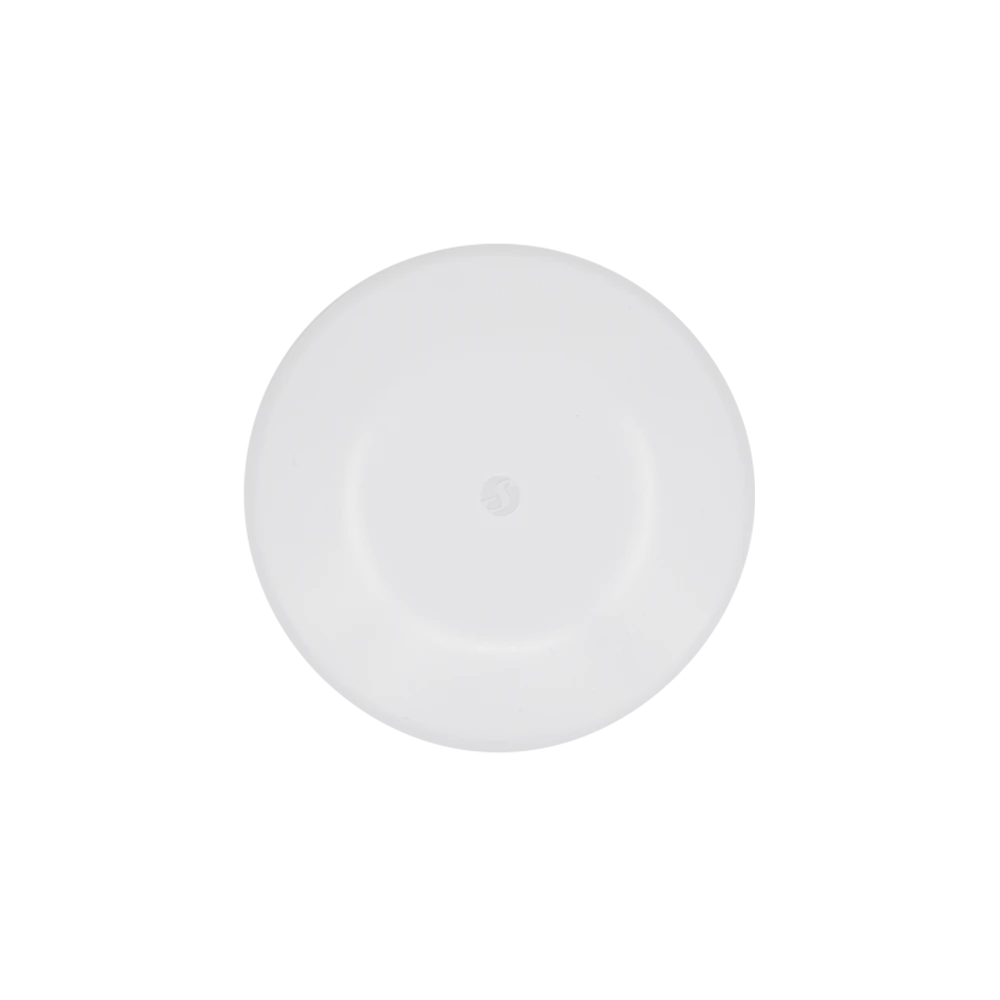

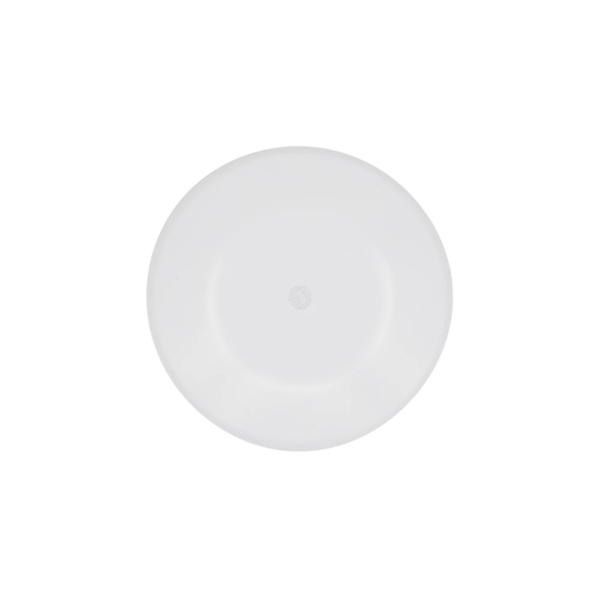

Shelly Flood S Gen4 – Sensore di allagamento

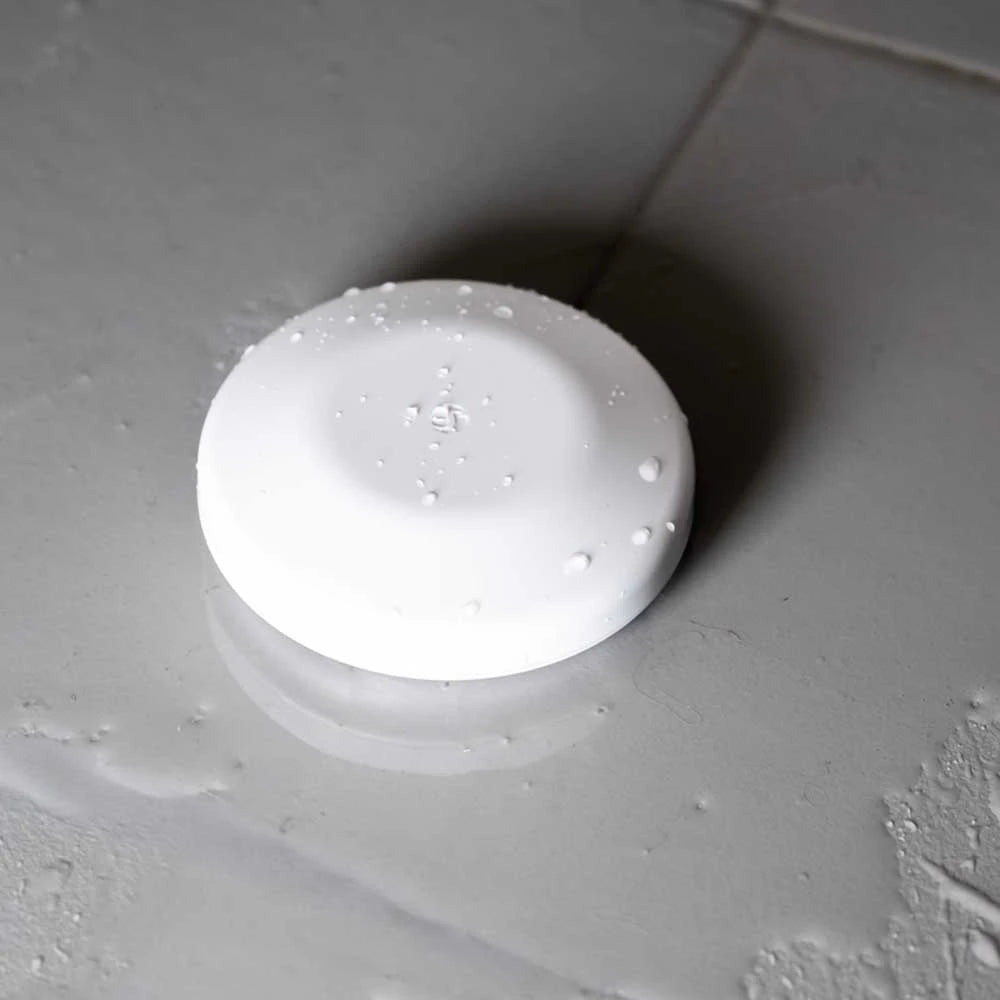

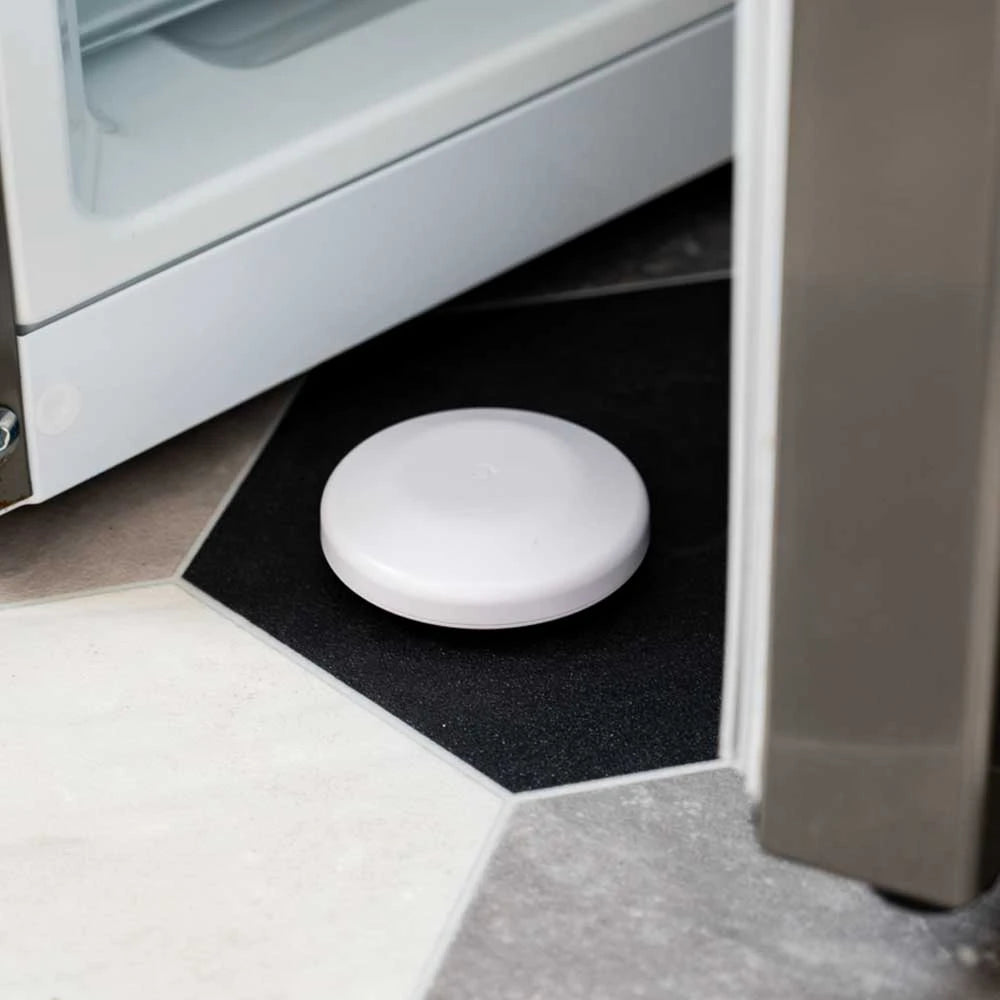

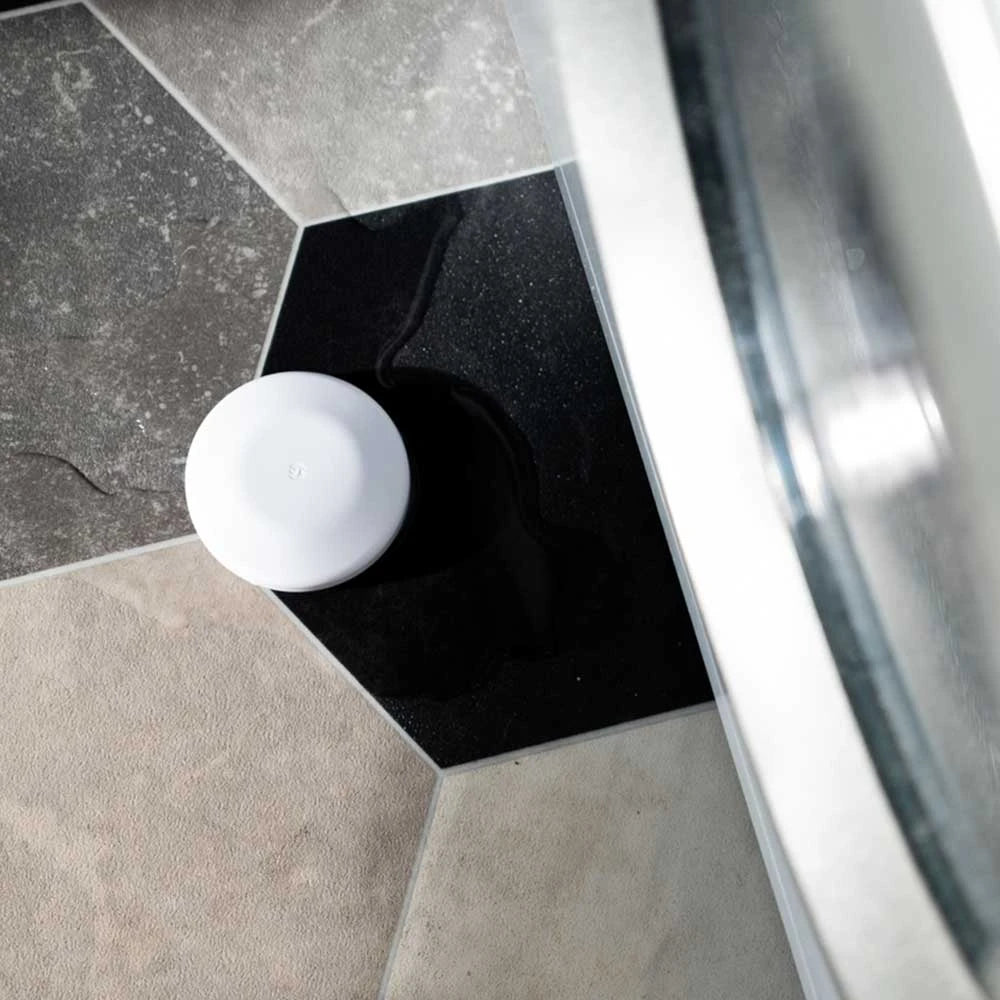

Rilevatore di perdite d’acqua da mettere sotto lavatrice, lavastoviglie, lavello, boiler o unita’ di condizionamento. Riconosce anche l’acqua pulita e poco conduttiva, che molti sensori non vedono, e avvisa subito.
- Segnalazione immediata sull’app e automazioni conseguenti, per esempio la chiusura di una valvola
- Wi-Fi, Zigbee, Bluetooth e Matter: si collega all’impianto che avete gia’
- A batteria CR123A inclusa, con autonomia stimata di circa due anni
- Formato compatto, si appoggia a pavimento dove serve senza lavori
- Automazioni eseguite in locale, attive anche se manca internet

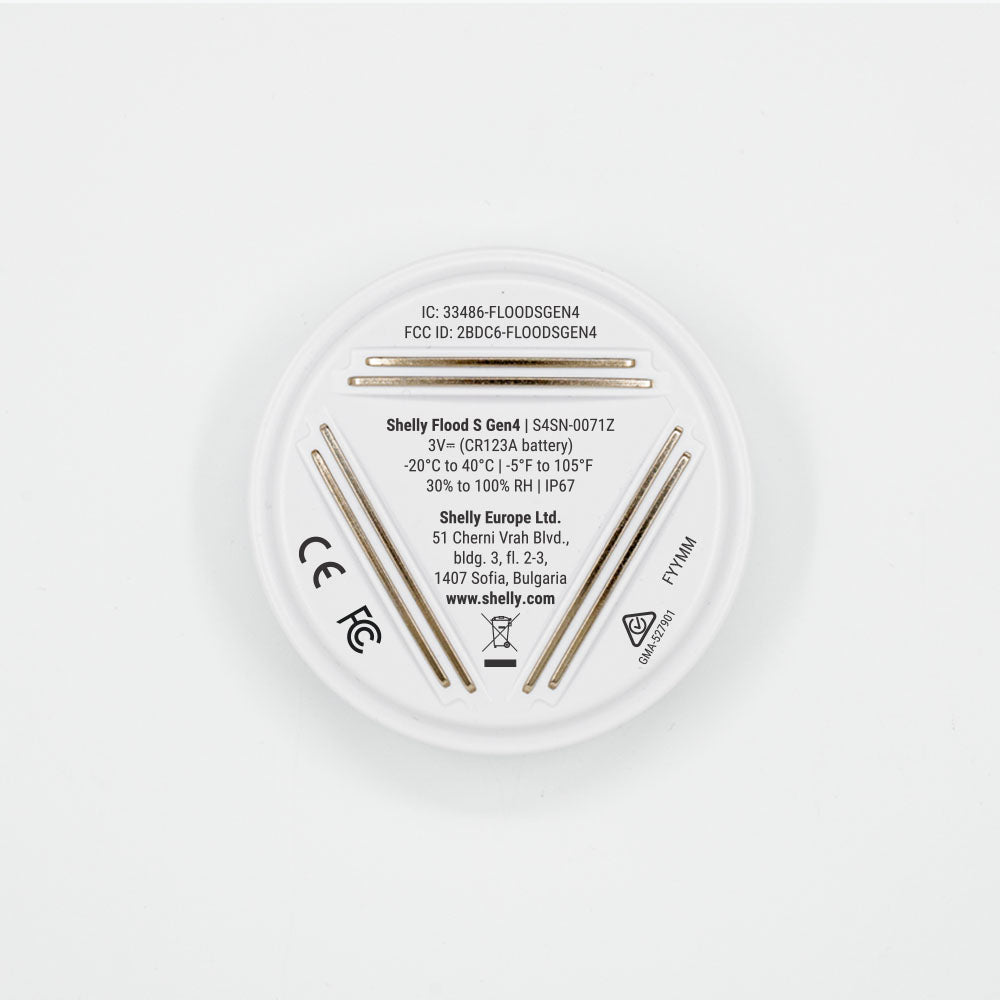

Modello del dispositivo: S4SN-0071Z.
| Mode: | Alarm Mode Report State Frequency* Buzzer** Buzzer Mute Conditions Use Case |
| Flood: | Intense Every 30 sec for 5 minutes Every 5 minutes for 30 minutes Every 30 minutes once for 1 hour Every 1 hour for 2 hours Every 2 hours indefinitely ON for 10 minutes Then ON for 1 minute every 5 minutes No Flood Button single push Protect extremely valuable assets: Lab Equipment Server Room … |
| Normal (Default): | ON for 5 minutes Then ON for 1 minute every 30 minutes Normal use |
| Economic: | Disabled N/A Activate when you won’t visit for a while: Vacation Home Mountain Cabin Country Cottage |
| Rain: | – Automating outdoor areas, such as controlling motorized awning or sprinklers. |
| Physical | |
| Size (HxD): | 23×77 mm / 0.91×3.03 inch |
| Weight: | 50 g / 1.76 oz (without battery) 70 g / 2.47 oz (with battery) |
| Mounting: | Flat surface |
| Shell material: | Plastic |
| Shell color: | White |
| Environmental | |
| Ambient working temperature: | -20°C to 40°C / -5°F to 105°F |
| Humidity: | 30% to 100% RH |
| Max. altitude: | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | Battery |
| Battery type: | 1 x CR123A (included) |
| Estimated battery life: | approx. 2 years (depending on batteries used, device usage, and network connection strength) |
| Sensors, meters | |
| Water Detection: | Yes |
| Wi-Fi | |
| Protocol: | 802.11 b/g/n/ax |
| RF band: | 2401 – 2483 MHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth | |
| Protocol: | 5 (LE) |
| RF band: | 2402 – 2480 MHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| Zigbee | |
| Protocols: | 802.15.4 |
| RF bands: | 2405 to 2480 MHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions) |
| Microcontroller unit | |
| CPU: | ESP-Shelly-C68F |
| Flash: | 8 MB |
| Firmware capabilities | |
| Schedules: | No |
| Webhooks (URL actions): | 10 with 2 URLs per hook |
| Scripting: | No |
| MQTT: | Yes |
| UDP: | Yes |
| KVS (Key-Value Store): | Yes |
