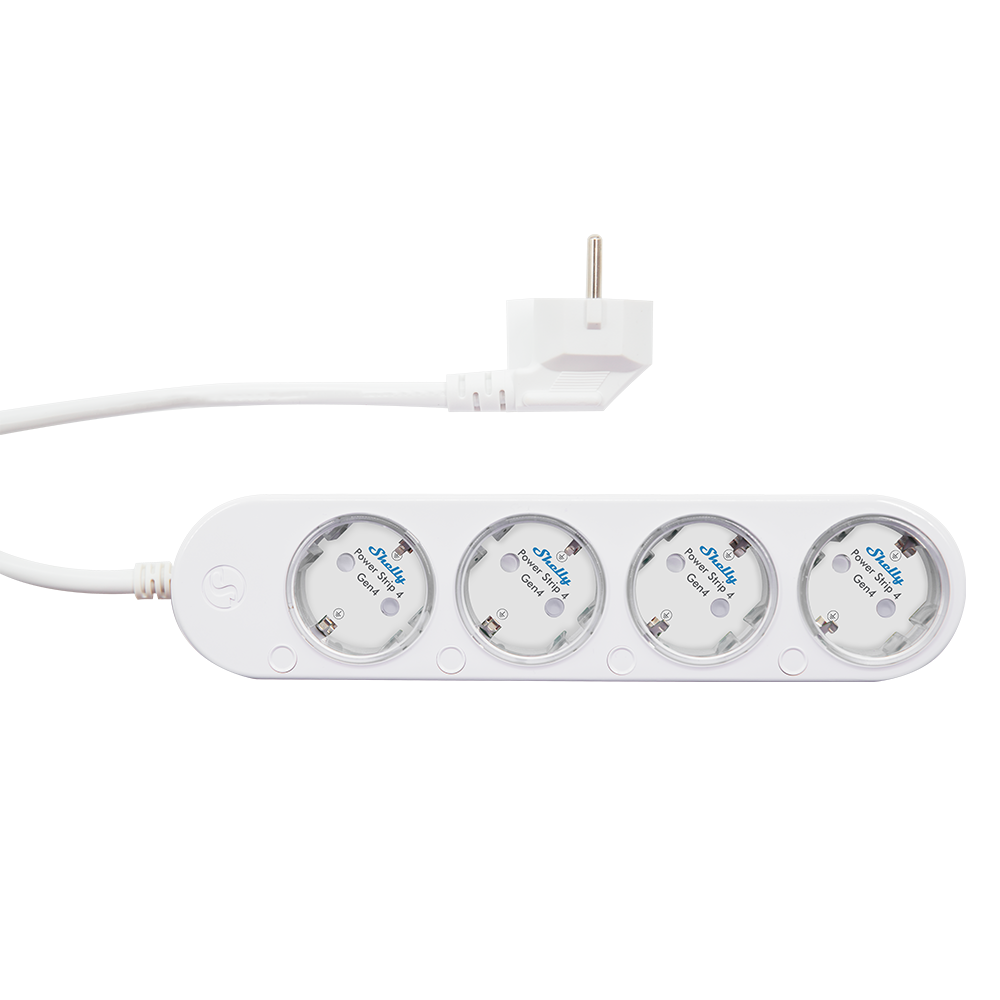

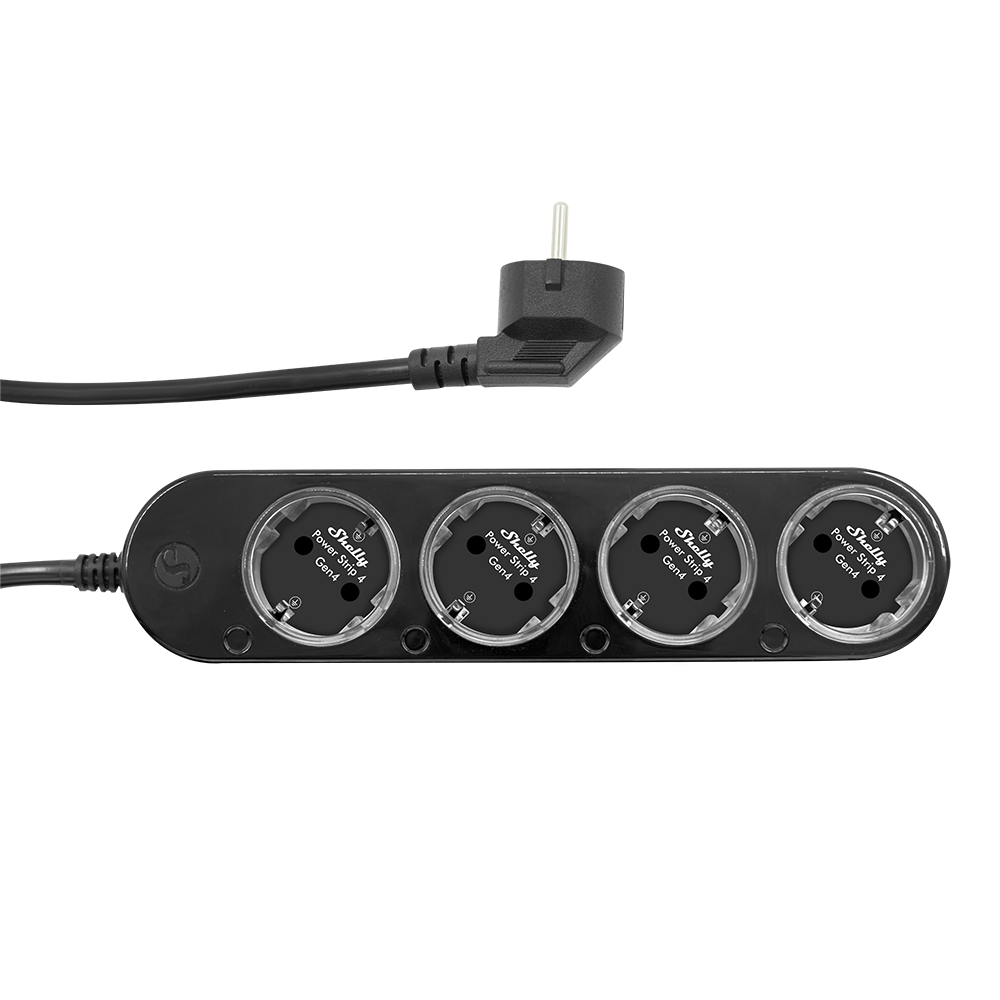

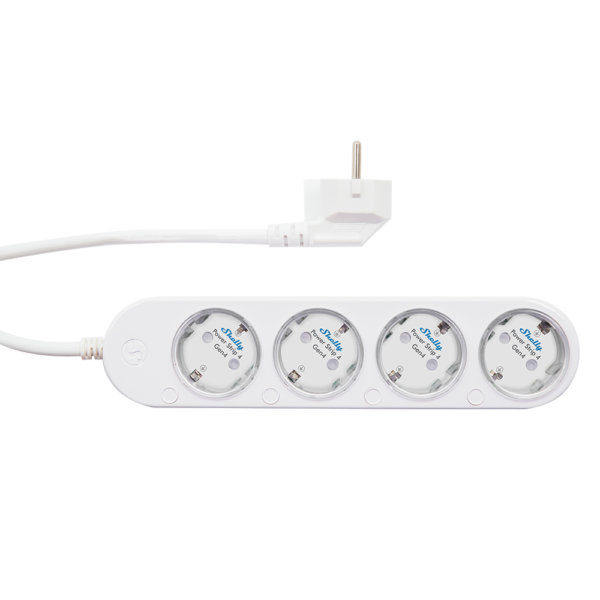

Shelly Power Strip 4 Gen4 – multipresa smart con misura dei consumi
Multipresa con quattro prese comandabili una per una, misura dell’energia e porte USB per la ricarica. Piattaforma Gen4 con Wi-Fi e Bluetooth, senza hub.
- Quattro prese indipendenti: si accende e si spegne solo quello che serve
- Misura dei consumi presa per presa, per capire chi consuma davvero
- Porte USB integrate per caricare telefono e tablet
- Programmazioni e automazioni eseguite in locale
- Comando da app Shelly Smart Control, da Alexa e da Google Home
| Physical | |
| Size (HxWxD) | 43x237x56 mm / 1.69×9.33×2.20 inch |
| Weight | 560 g / 19.75 oz |
| Compatible sockets | CEE 7/1, CEE 7/3 (Type F / Schuko) or CEE 7/5 (Type E) |
| Compatible plugs | CEE 7/2, CEE 7/4 (Type F / Schuko), CEE 7/7, CEE 7/16 (Type C) or CEE 7/17 |
| Shell material | Plastic |
| Shell color | White Black |
| Cable color | White Black |
| Power Cord Lenght | 1,5 m H05VV-F 3G 1,5 mm² |
| Environmental | |
| Ambient working temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Electrical | |
| Power supply | 220 – 240 V~ 50/60 Hz |
| Power consumption | < 1 W |
| Output circuits ratings | |
| Max. switching voltage | 250 V~ |
| Rated output current | 16 A total between all 4 sockets |
| Max. switching current | 12 A per individual socket |
| Max. output power | 3680 W |
| Number of switching cycles | 10000 |
| Overvoltage category | II |
| Duty-type | S1 |
| Switch type | One-way |
| Switch configuration | SPNO (single-pole, normally-open) |
| Type of circuit disconnection | Micro (µ) |
| Sensors, meters | |
| Voltmeter (AC) | Yes |
| Ammeter (AC) | Yes |
| Power and energy meters | Yes |
| Internal-temperature sensor | Yes |
| Radio | |
| Wi-Fi | |
| Protocol | 802.11 b/g/n/ax |
| RF band | 2412 – 2472 MHz |
| Max. RF power | < 20 dBm |
| Range | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth | |
| Protocol | 5.0 |
| RF band | 2402 – 2480 MHz |
| Max. RF power | < 4 dBm |
| Range | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| Zigbee | |
| Protocol | 802.15.4 |
| Zigbee repeater | Yes |
| RF bands | 2400 to 2483.5 MHz |
| Max. RF power | < 20 dBm |
| Range | Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions) |
| Microcontroller unit | |
| CPU | ESP-Shelly-C68F |
| Flash | 8 MB |
| Firmware capabilities | |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 5 URLs per hook |
| Scripting | Yes |
| MQTT | Yes |
| CoAP | No |
