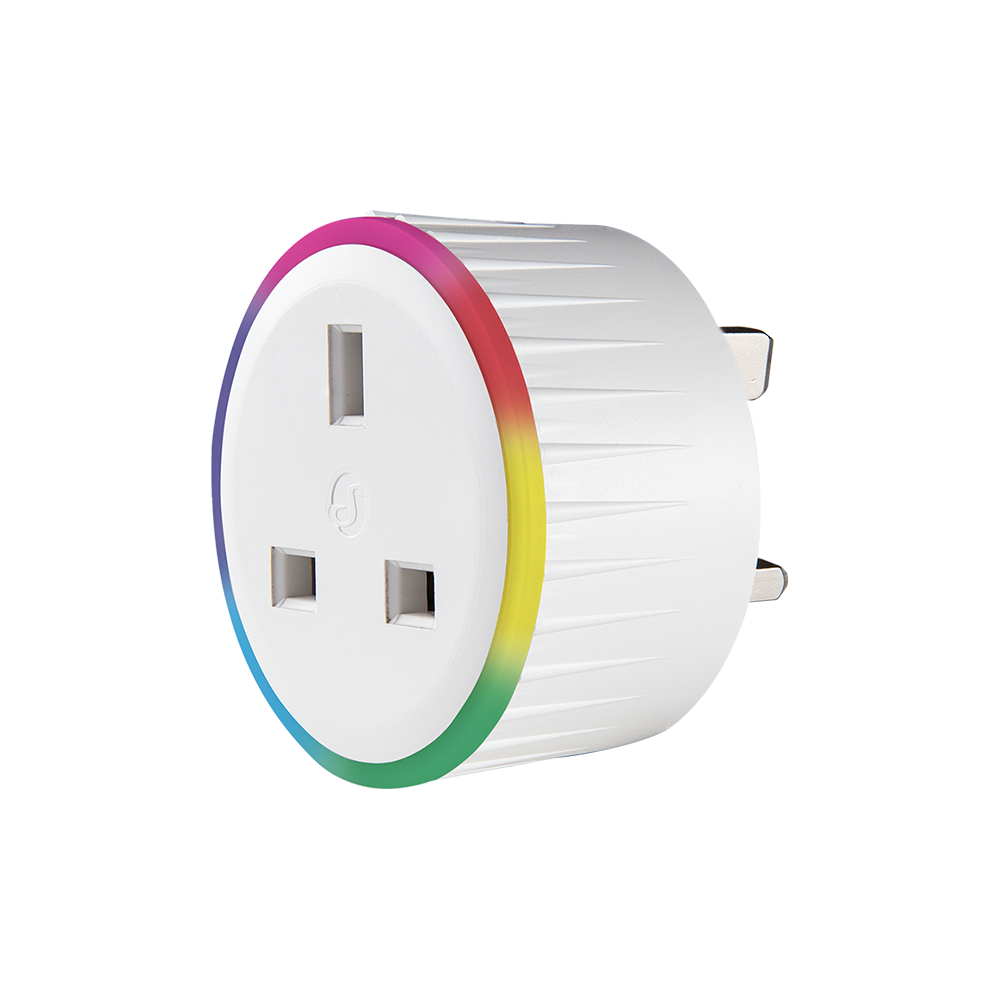

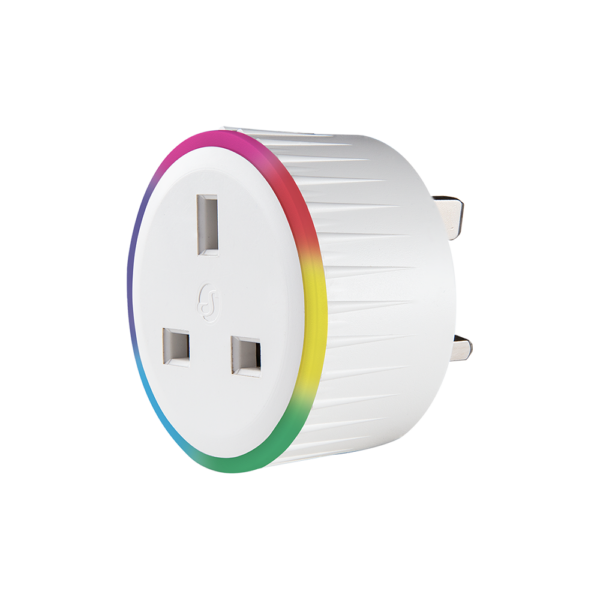

Shelly Plus Plug UK – presa smart con spina britannica
Presa intelligente con spina e presa nello standard britannico BS 1363 (Type G): comanda e misura qualsiasi apparecchio collegato. Non è compatibile con le prese italiane.
- Standard BS 1363 (Type G): per impianti nel Regno Unito e in Irlanda
- Comando a distanza e misura dei consumi dell’apparecchio collegato
- Wi-Fi 802.11 b/g/n, portata fino a 30 m in interno
- Programmazioni e automazioni eseguite in locale
- Alimentazione 230 V, 50/60 Hz
| Type: | Value |
| Physical | |
| Size (HxWxD): | 60x60x56 ±0.5 mm / 2.36×2.36×2.20 ±0.02 in |
| Weight: | 74 ±1 g / 2.6 ±0.04 oz |
| Compatible sockets: | BS 1363 (Type-G) |
| Compatible plugs: | BS 1363 (Type-G) |
| Shell material: | Plastic |
| Color: | White |
| Environmental | |
| Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
| Electrical | |
| Power supply voltage AC: | 230 V ±10 % , 50/60 Hz |
| Power supply voltage DC: | N/A |
| Power consumption: | < 1 W |
| Output circuits ratings | |
| Max switching voltage AC: | 260 V |
| Max switching voltage DC: | N/A |
| Max switching current AC: | 13 A |
| Max switching current DC: | N/A |
| Sensors, meters | |
| Internal-temperature sensor: | Yes |
| Voltmeter: | Yes |
| Ammeter: | Yes |
| Power and energy meters: | Yes |
| Radio | |
| RF band: | 2400 – 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth Protocol: | 4.2 |
| Bluetooth Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| MCU | |
| CPU: | ESP32-U4WDH |
| Flash: | 4 MB |
| Firmware capabilities | |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
| CoAP: | No |
