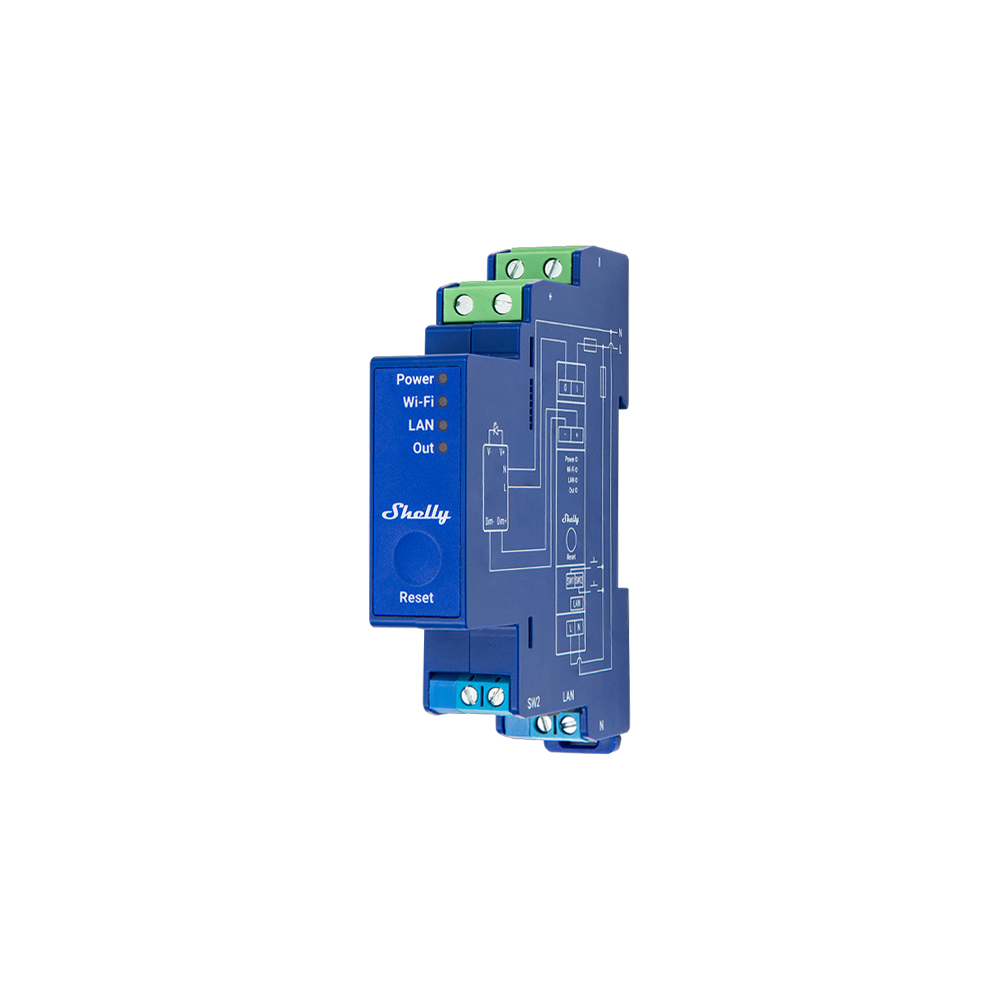

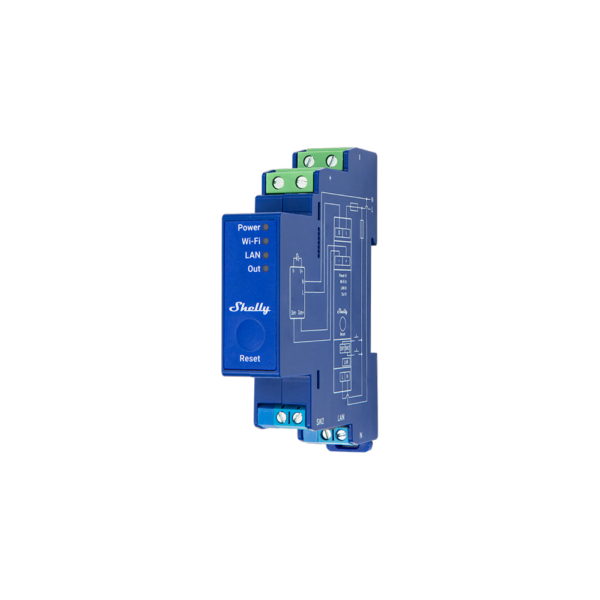

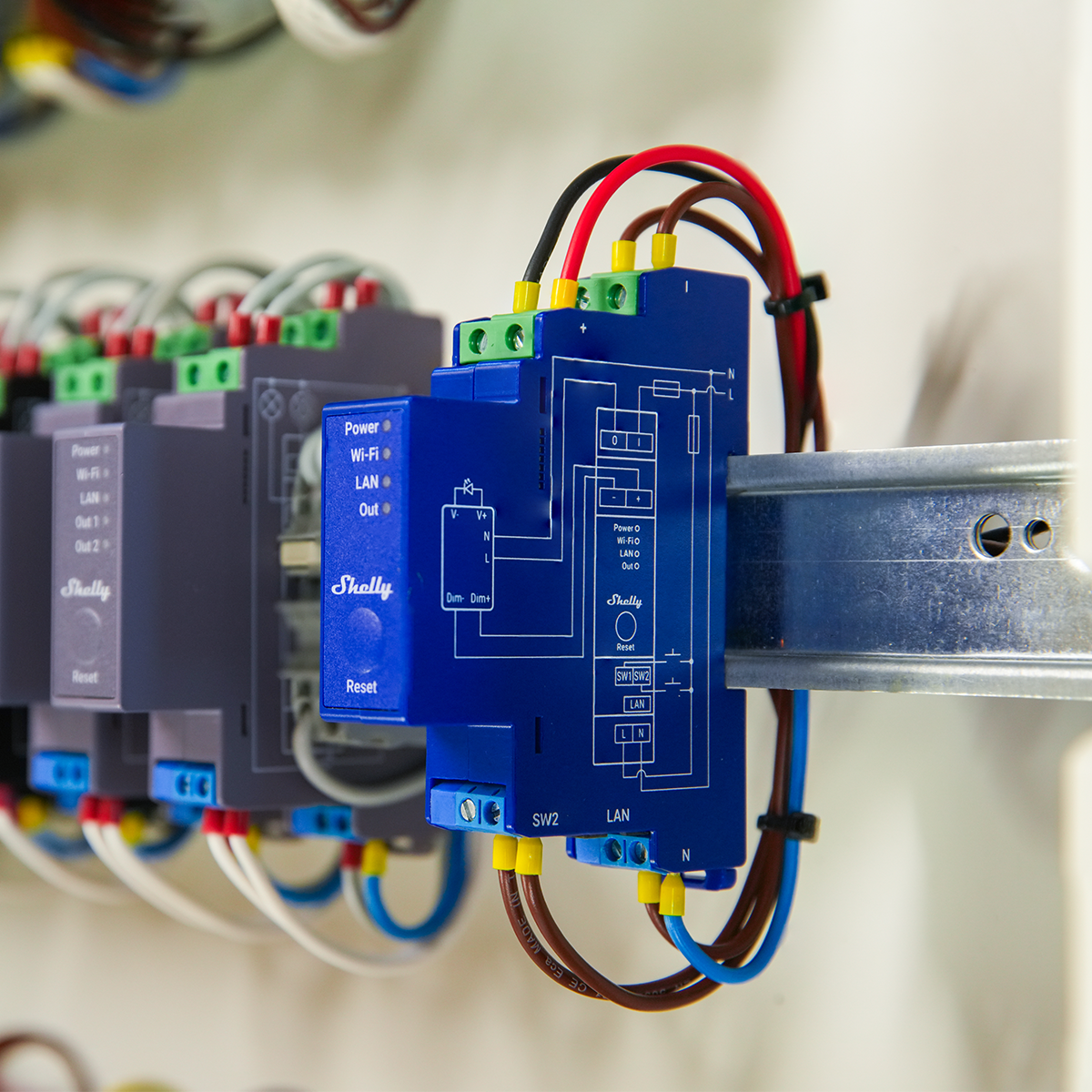

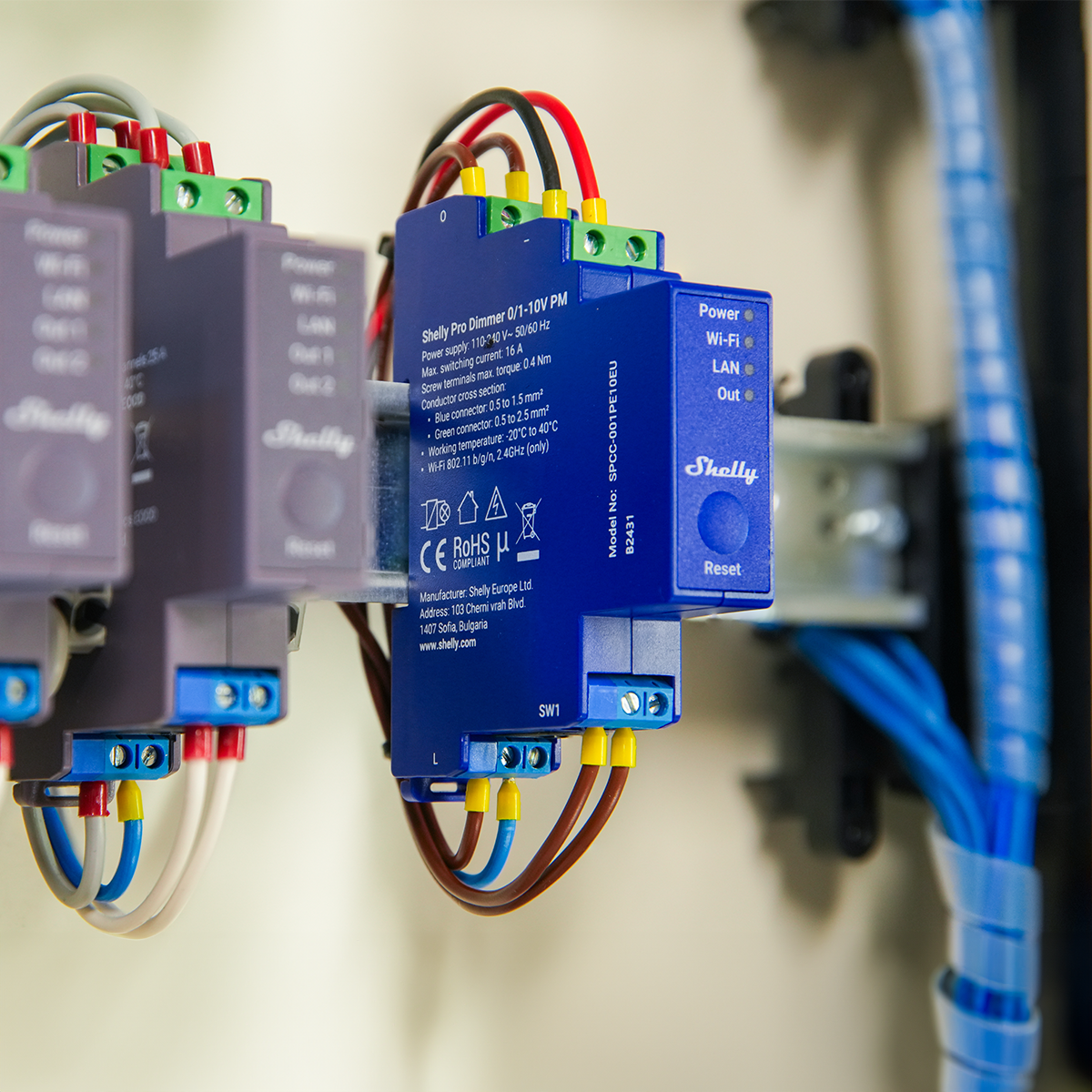

Shelly Pro Dimmer 0/1-10V PM – dimmer da quadro per driver 0-10 V
Regolatore da guida DIN per driver di illuminazione 0/1-10 V, con misura della potenza: porta il comando dell’illuminazione professionale dentro il quadro.
- Comanda driver e alimentatori dimmerabili 0-10 V e 1-10 V
- Misura della potenza sul circuito comandato
- Protezione esterna consigliata 16 A, curva B o C
- Montaggio su guida DIN, alimentazione 110-240 V
- Automazioni e scenari eseguiti in locale
| Physical | |
| Size (HxWxD): | 94x19x69 ±0.5 mm / 3.70×0.75×2.71 ±0.02 in |
| Weight: | 70 g / 2.5 oz |
| Screw terminals max torque: | 0.4 Nm / 3.54 lbin |
| Conductor cross section: | 0.5 to 2.5 mm² / 20 to 14 AWG (green connectors) 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (blue connectors) |
| Mounting: | DIN |
| Shell material: | Plastic |
| Shell color: | Blue |
| Connectors color: | Green Blue |
| Environmental | |
| Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | 110 – 240 V~ |
| Power consumption: | < 3 W |
| Neutral not needed: | No |
| 0-10V/1-10V voltage control type: | Current sourcing |
| External protection: | 16 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3 |
| Output circuits ratings | |
| Max. switching voltage: | 240 V~ |
| Max. switching current: | 16 A |
| Sensors, meters | |
| Voltmeter (AC): | Yes |
| Ammeter (AC): | Yes |
| Power and energy meters: | Active and apparent power Active and apparent energy Power factor Fundamental active and fundamental reactive energy |
| Measurement data storage: | No |
| Internal-temperature sensor: | Yes |
| Wi-Fi | |
| Protocol: | 802.11 b/g/n |
| RF band: | 2412 – 2472 MHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth | |
| Protocol: | 4.2 |
| RF band: | 2402 – 2480 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| Microcontroller unit | |
| CPU: | ESP32-D0WDQ6 |
| Clock frequency: | 40 Mhz |
| Flash: | 8 MB |
| Firmware capabilities | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
| Advanced schedules: | Yes |
| KVS (Key-Value Store): | Yes |
| Terminals: | Wires |
| O: | Relay output terminal L Live (110-240 V~) wire |
| I: | Relay input terminal N Neutral wire |
| +: | 0-10 V⎓ positive terminal |
| -: | 0-10 V⎓ negative terminal |
| SW1: | Switch/button input terminals for light control |
| SW2: | Switch/button input terminals for light control |
| LAN: | Local Area Network RJ 45 connector |
| L: | Live (110-240 V~) terminal |
| N: | Neutral terminal |
| Dim+/Dim-: | Positive/negative terminal of the LED driver |
| V+/V-: | Positive/negative output of the LED driver |
