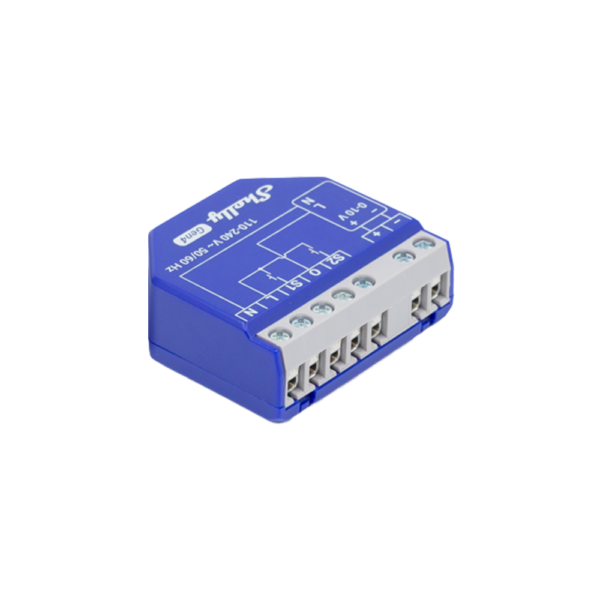

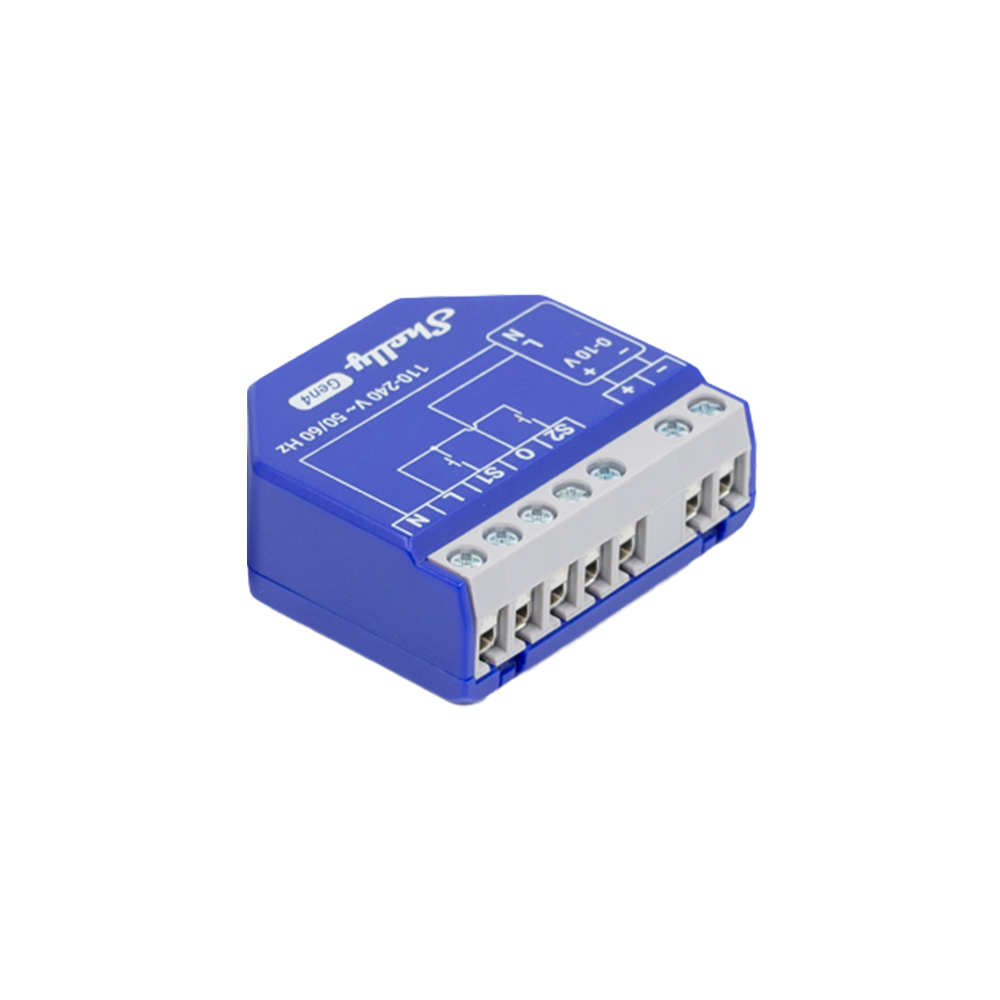

Shelly Dimmer 0/1-10V PM Gen4 – Controllo 0-10V con misura dei consumi
Controller intelligente per driver LED dimmerabili 0-10V e 1-10V, apparecchi e impianti di illuminazione professionali. Si alimenta in 230 V e porta il segnale di regolazione al driver, con misura della potenza integrata.
- Regolazione precisa su driver 0-10 V e 1-10 V, per illuminazione residenziale, commerciale e industriale
- Wi-Fi, Zigbee, Bluetooth e Matter: integrazione diretta nei principali ecosistemi smart
- Misura di potenza ed energia sul canale comandato
- Automazioni e script in locale, con funzionamento garantito anche senza internet

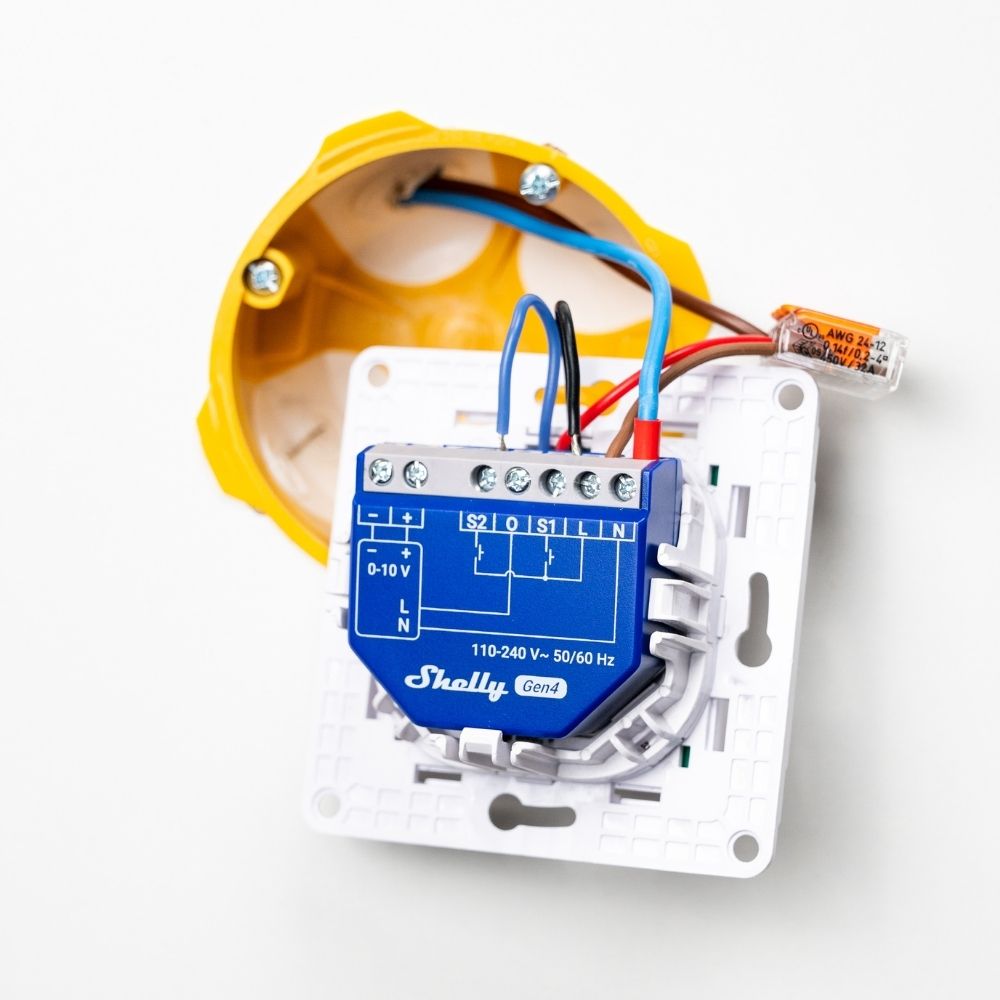

- Installazione nella scatola da incasso, a soffitto o nel controsoffitto vicino al driver
- Aggiornamenti firmware e configurazione dall’app Shelly Smart Control

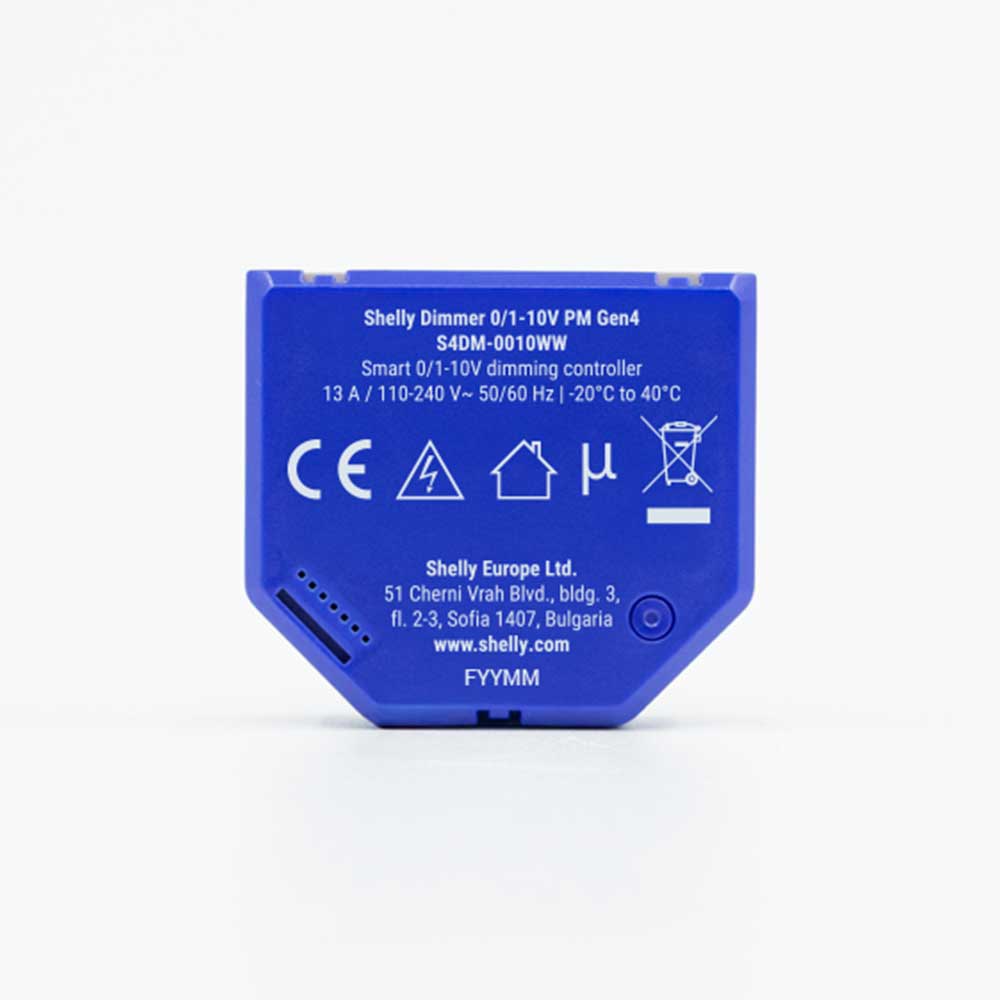

Modello del dispositivo: S4DM-0010WW.
| Physical | |
| Size (HxWxD): | 38.5×43.5x17mm / 1.52×1.71×0.67in |
| Weight: | 28.5 g / 0.99 oz |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 5 to 6 mm / 0.20 to 0.24 in |
| Mounting: | Wall console/behind wall/ceiling construction |
| Shell material: | Plastic |
| Shell color: | Shell: Pantone 2736C (blue) Print: White |
| Connector color: | Gray |
| Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | 110-240 V~, 50/60 Hz |
| Power consumption: | < 1.5 W |
| 0-10V/1-10V voltage control type: | Current sourcing Current sinking |
| External protection: | 16 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3 |
| Output circuits ratings | |
| Max. switching voltage: | 240 V~ |
| Max. switching current: | 13 A |
| Max. control current: | 35 mA |
| Sensors, meters | |
| Voltmeter (AC): | 110 V – 240 V |
| Voltmeter accuracy: | ±10 % |
| Ammeter (AC): | 50 mA – 16 A |
| Ammeter accuracy: | ±10 % |
| Measurement data storage: | No |
| Internal-temperature sensor: | Yes |
| Wi-Fi | |
| Protocol: | 802.11 b/g/n/ax |
| RF band: | 2401 – 2483 MHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth | |
| Protocol: | 5.0 |
| RF band: | 2402 – 2480 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| Zigbee | |
| Protocol: | 802.15.4 |
| Zigbee repeater: | Yes |
| RF bands: | 2405 – 2480 MHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions) |
| Microcontroller unit | |
| CPU: | ESP32-C6 |
| Clock frequency: | 80 MHz |
| Flash: | 8 MB |
| Firmware capabilities | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
| Advanced schedules: | Yes |
| KVS (Key-Value Store): | Yes |

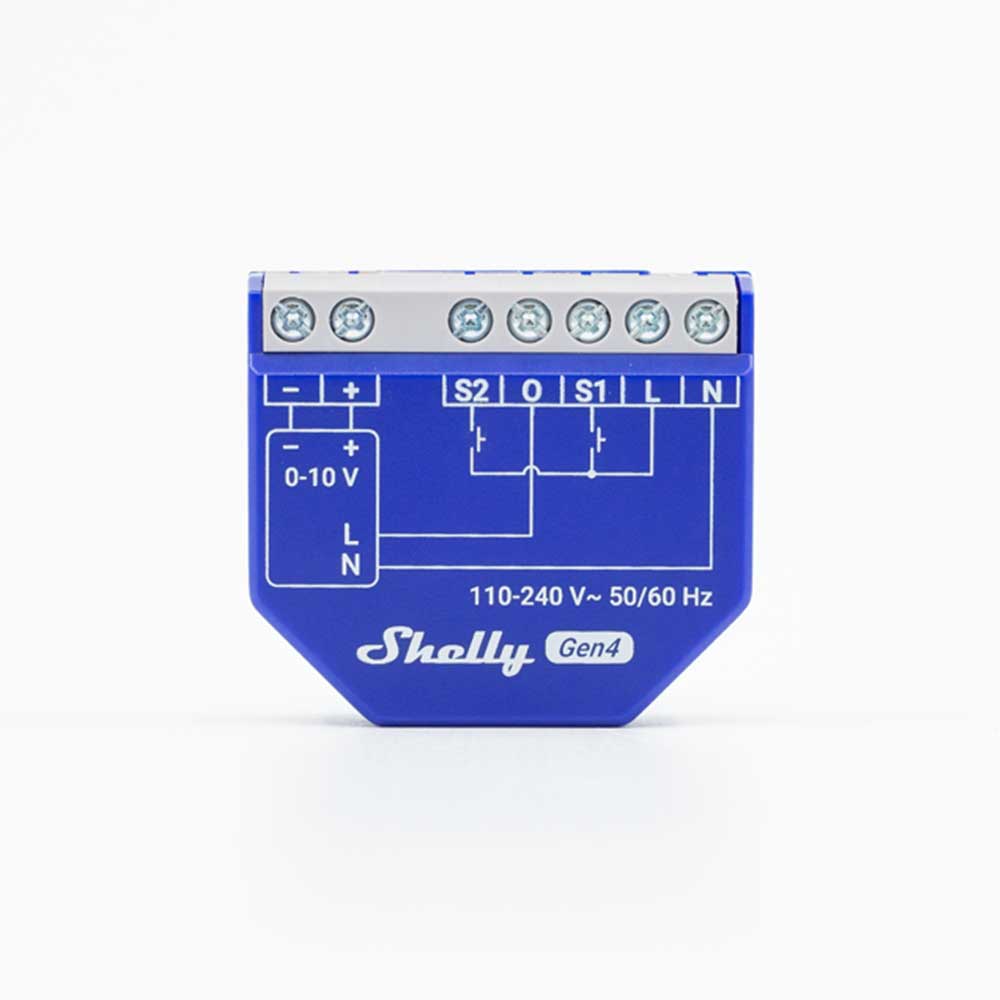

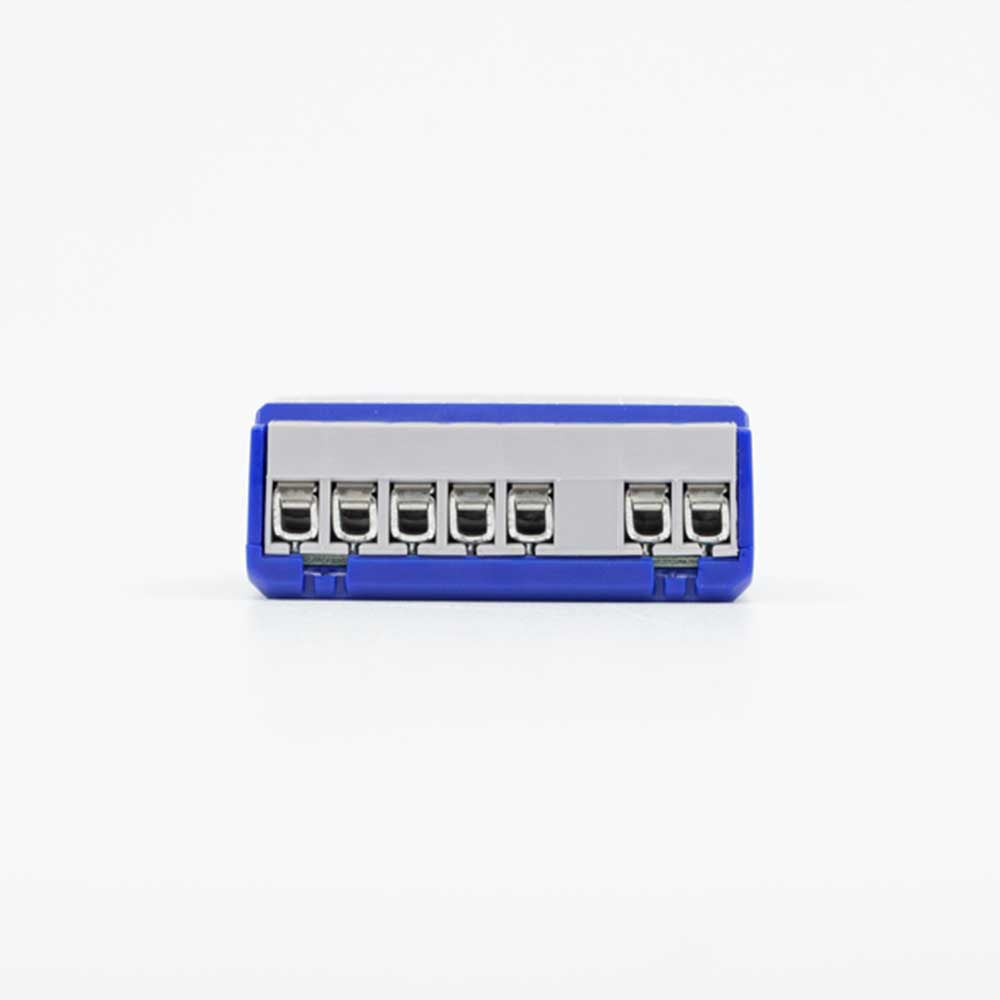

| Terminals: | Wires |
| -: | 0-10 VDC negative terminal L Live (110-240 V) wire |
| +: | 0-10 VDC positive terminal N Neutral wire |
| O: | Relay output |
| S1: | Switch/button input terminals for light control |
| S2: | Switch/button input terminals for light control |
| L: | Live (110-240 V) terminal |
| N: | Neutral terminal |
| Dim-/Dim +: | Positive/negative terminal of the LED driver |
| V-/V+: | Positive/negative output of the LED driver |
