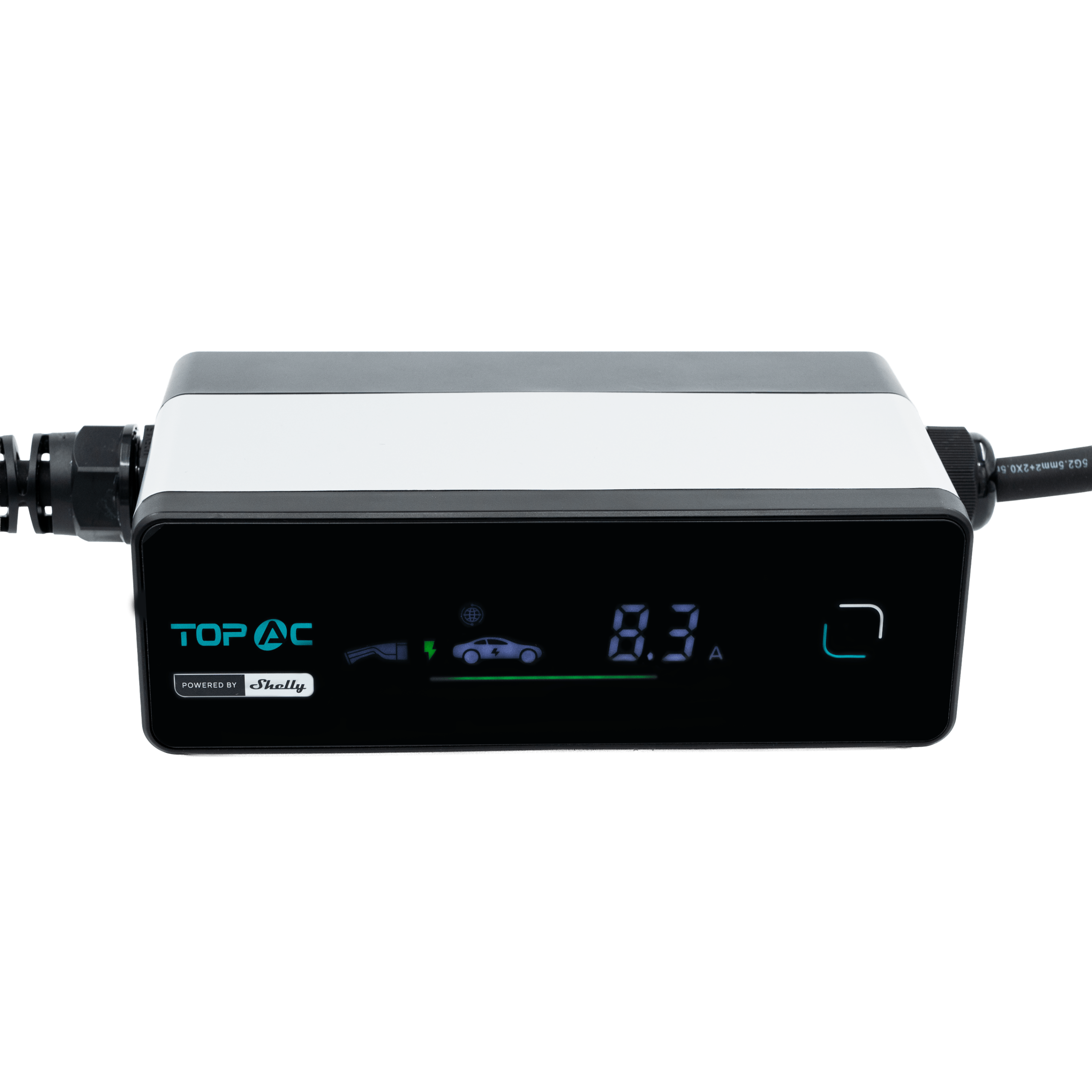

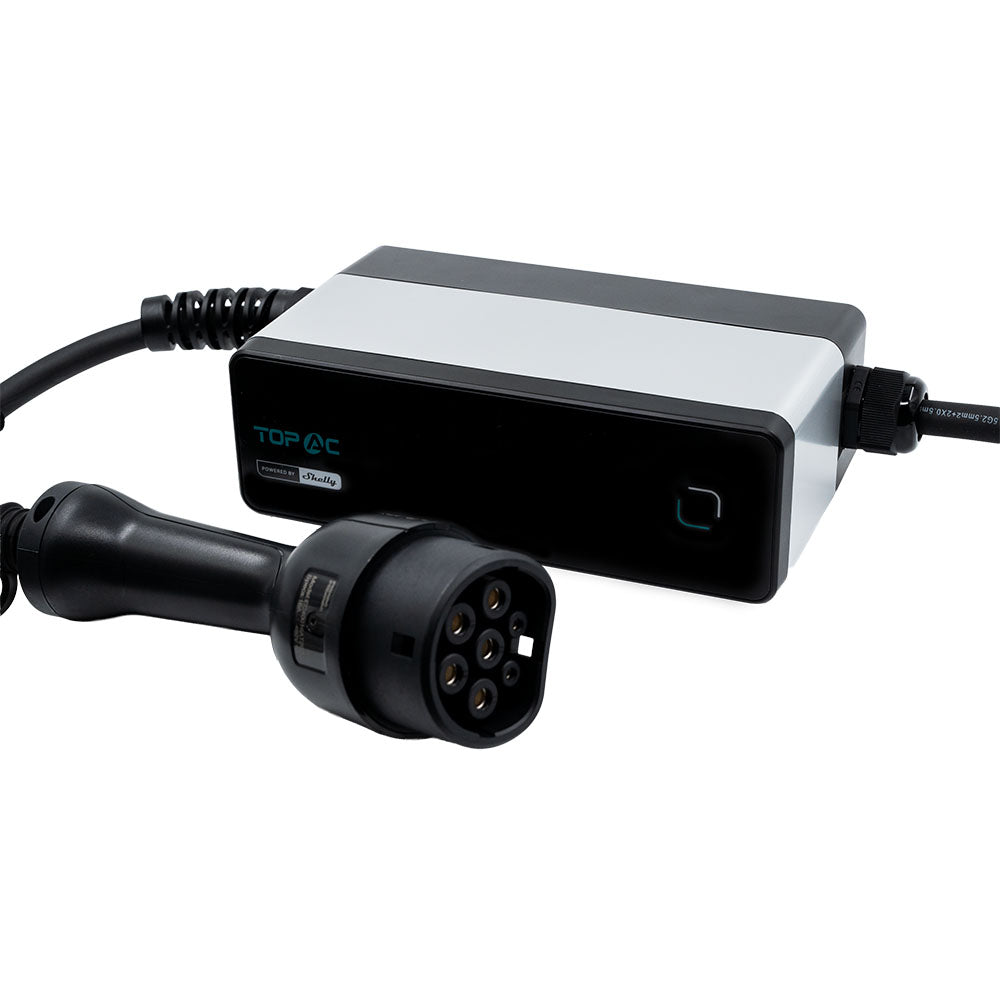

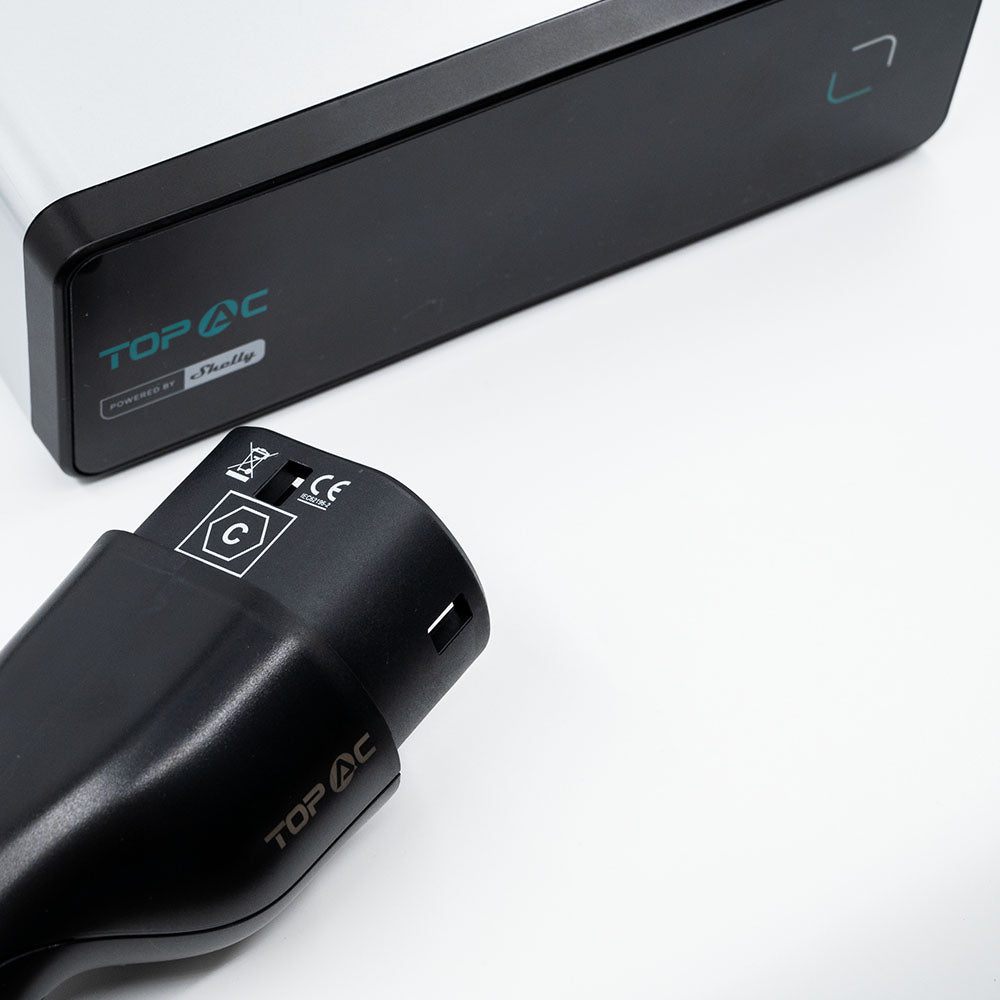

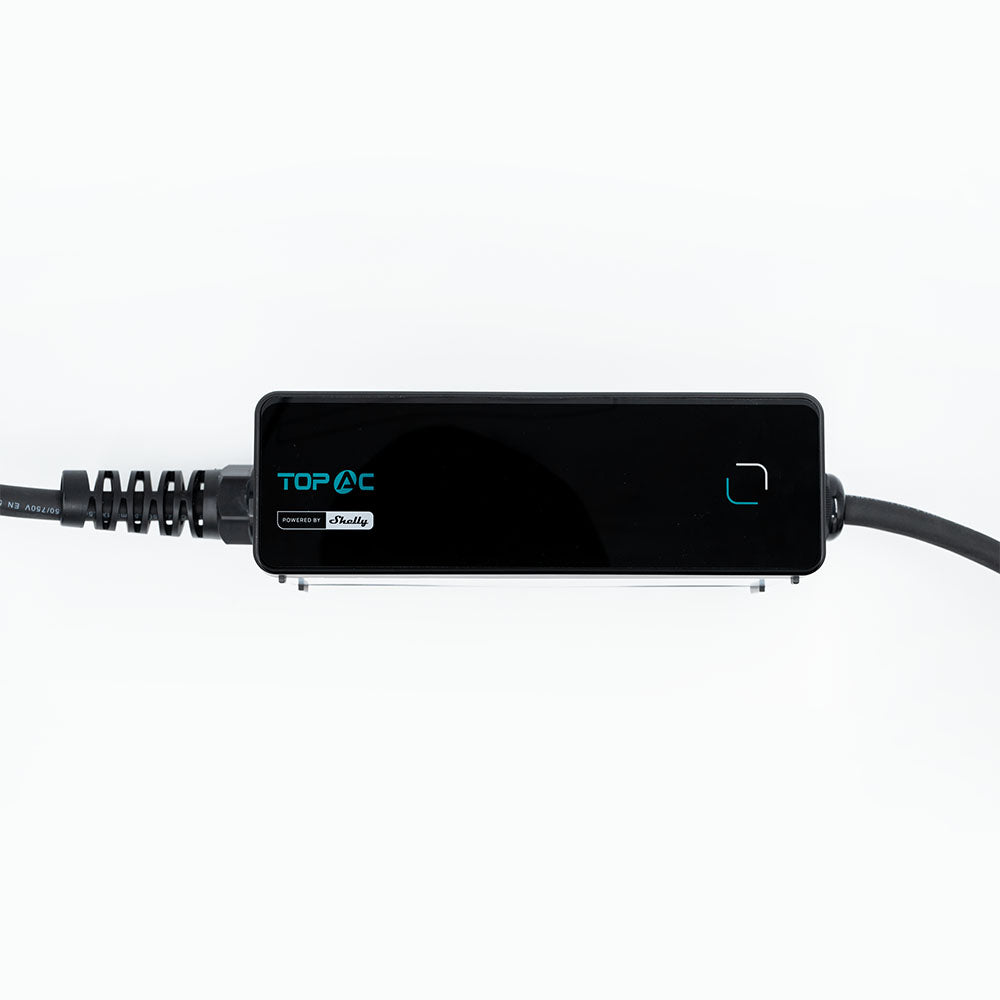

TopAC EVE01-11R – caricatore portatile per auto elettrica
Caricatore portatile per auto elettriche fino a 11 kW: si porta in auto e si collega dove serve, senza installare una colonnina.
- Potenza fino a 11 kW, ricarica trifase
- Portatile: resta in auto e si usa in viaggio o in seconda casa
- Regolazione della corrente per adattarsi all’impianto disponibile
- Alternativa economica alla stazione di ricarica fissa
| Model | EVE01-11R |
| Power Supply | (3P + N + PE), 380-400V AC, 50/60Hz |

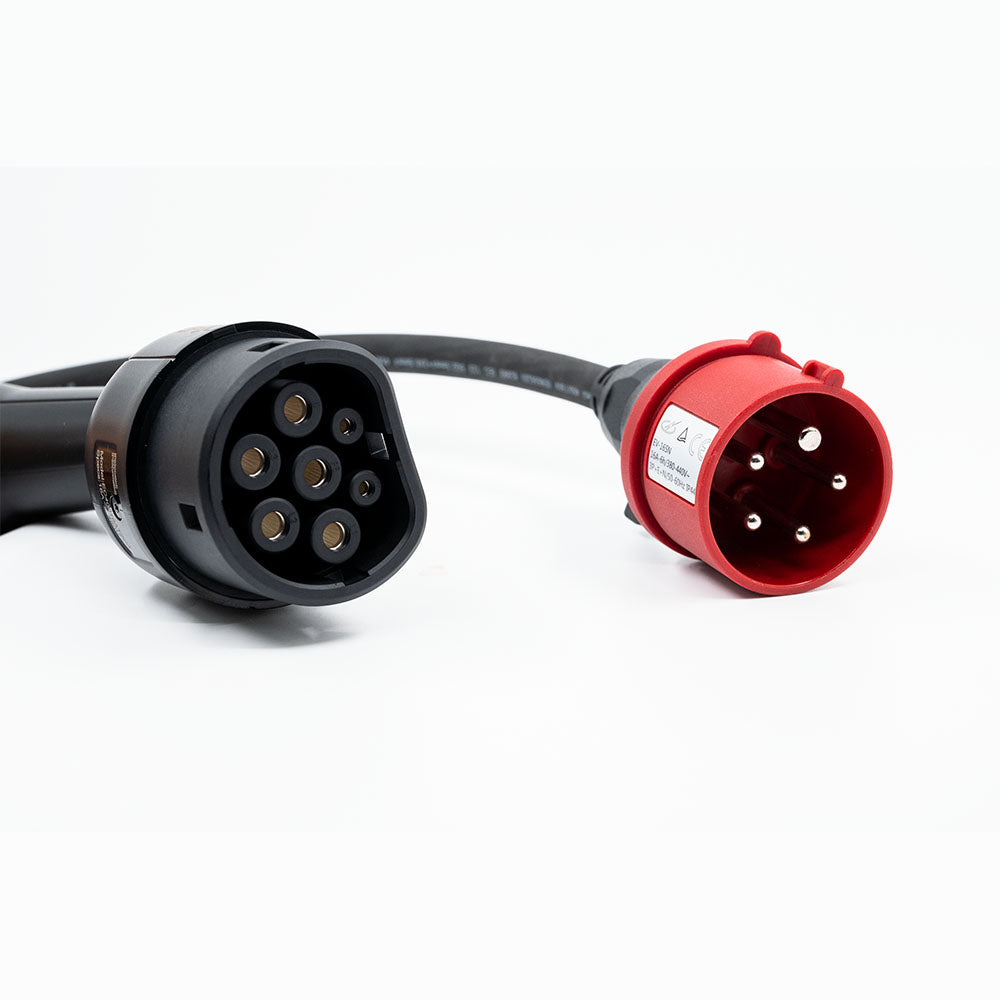

| Power Plug | CEE Plug (3 Phase, 16A) with NTC |
| Selectable Current | 6A to 16A |
| Rated Power | Up to 11kW |
| Input Plug Cable | 5×2.5mm² + 2×0.5mm² |
| Charging Cable | 5×2.5mm² + 1×0.5mm² |
| Cable Material | TPU Rubber |
| Vehicle Connector | Type 2 |
| Start Mode | Shelly Smart Control app |
| Ingress Protection | IP65 |
| Total Product Length | 5.6 meters |
| RCD Type | Type A (30mA AC) + 6mA DC |
| Safety Protection | CP Diode Short Circuit Protection, Surge protection Relay Adhesion Protection, Over current protection, Over/under voltage protection, Ground protection, Over temperature protection, Current Leakage protection |
| Mating Cycles | Plug in / Pull out > 10 000 times |
| Earthing System | TN-C, TN-S |
| Certificate | CE, RoHS |
| Test Standard | EN IEC 62752, EN IEC 62196, EN 50620 / IEC 62893 |
| Impact Protection | IK08 |
| Working Temperature | -25 °C to 45 °C |
| Working Altitude | < 2 000 meters |
| Working Humidity | 5% to 95% (no condensation) |
