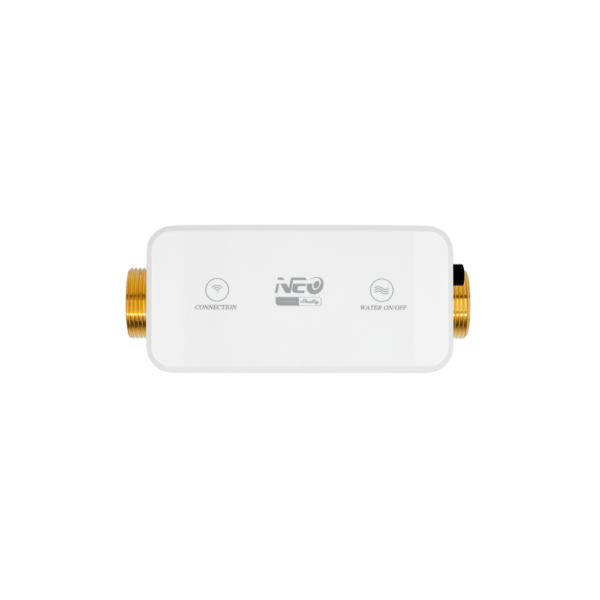

Neo Smart Water Valve – valvola motorizzata per l’acqua
Valvola motorizzata che apre e chiude l’acqua da remoto: abbinata a un sensore di allagamento chiude la linea prima che il danno si allarghi.
- Apre e chiude l’acqua da app, da scenario o in automatico
- Si abbina ai sensori di allagamento: alla prima perdita l’acqua si chiude da sola
- Motorizzata, si installa sulla tubazione esistente
- Comando manuale sempre possibile
| Action: | How to |
| Open the valve: | Press the Water on/off button. The indicator light turns green. |
| Close the valve: | Press the Water on/off button. The indicator light turns red. |
| AP and Bluetooth reactivation: | Press and hold the Connection button until the indicator light start to flash slowly. This operation reactivates AP and Bluetooth connection. After the device is re-connected, the indicator light becomes permanent. |
| Device state: | Indicator status |
| Awaiting connection: | The Connection button’s light flashes once every 2 seconds |
| Connected: | The Connection button’s light is steady |
| Opened: | Water ON/OFF indicator’s light is green |
| Closed: | Water ON/OFF indicator’s light is red |
| Network reset: | Press and hold the Connection button until the indicator light start flashing |
| Parameter: | Value |
| Power supply: | DC 5V / 2 A |
| Maximum working current: | 800 mA |
| Standby power consumption: | 0.3 W |
| Valve on/off time: | 12 seconds |
| Valve diameter: | DN25 / 1 inch pipe |
| Water temperature detection range: | −10°C to 65°C (14°F ~ 149°F) |
| Water temperature detection accuracy: | ±0.5°C (±0.9°F) |
| Water pressure range: | 0 ~ 200 psi (0 ~ 1378.95 KPa) |
| Water pressure detection accuracy: | ±1 kPa |
| Accuracy of water flow detection: | 0.1gal (0.38l) |
| Wireless frequency: | 2.41 to 2.48 GHz / 5.18 to 5.85 GHz |
| Wireless standard: | IEEE802.11 a/b/g/n, IEEE802.11 a/11n/11ac |
| Bluetooth version: | Bluetooth 5.0 |
| Working temperature: | 1°C to 65°C (34°F to 149°F) |
| Working humidity: | 1% to 95% RH |
| Thread type: | G1-1/4 BSPP thread; DN25 G1 R adapter included in the packaging |
| Ingress protection: | IPX7 |
| Size (L x W x H): | 195 × 78 × 102 mm / 7.7 × 3.1 × 4 in |
